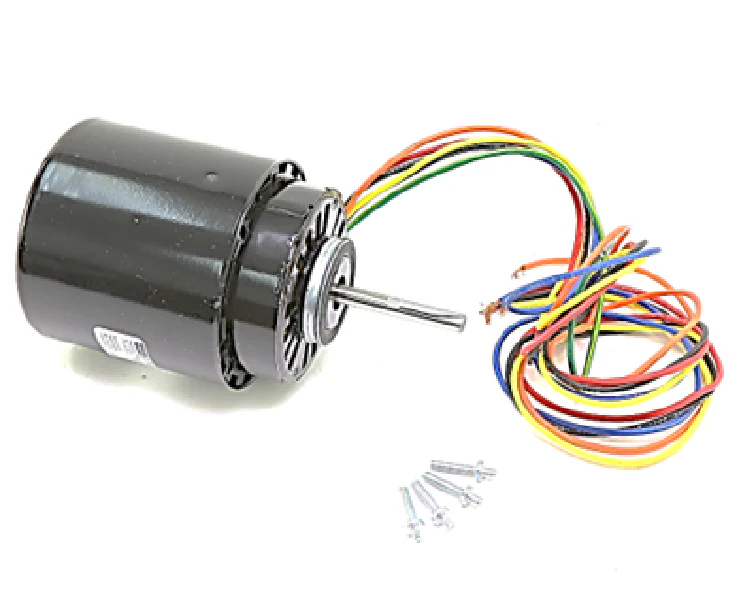

Fasco D672B Motor
The Fasco D672B Motor is a high-performance shaded pole refrigeration motor engineered for demanding HVACR applications requiring a 1/15 HP output. Operating at 1550 RPM, this 3.3-inch diameter motor features a versatile multi-tap voltage configuration, supporting 115V, 208V, and 230V single-phase power sources. Designed with a steel 3.3-frame and ball bearings, it ensures reliable mechanical rotation in an Open Air Over (OAO) enclosure, making it an ideal choice for evaporator fan motor replacement in commercial refrigeration systems. The unit is thermally protected with automatic reset capabilities to prevent winding failure during over-current conditions. It utilizes a 5/16-inch diameter flat shaft with a 2.5-inch extension, rotating clockwise from the shaft end (CWSE). Whether you are performing a condenser fan motor repair or a general system overhaul, the D672B provides the torque and thermal resilience needed for continuous duty cycles in 40°C ambient environments.
Key Benefits- Universal Voltage Compatibility: The 115/208-230V multi-voltage motor design simplifies inventory for contractors by covering three common power ratings in a single SKU.
- Superior Bearing Life: Equipped with dual ball bearings rather than sleeve bearings, providing increased longevity in high-temp and vertical-shaft applications.
- Direct OEM Replacement: Features a standard 3.3-inch motor diameter and extended studs for seamless mounting in most refrigeration and ventilation housings.
- Enhanced Safety: Includes automatic thermal overload protection to safeguard the motor against overheating during restricted airflow or mechanical lock.
What is the rotation for the Fasco D672B?
This motor is rated for clockwise rotation (CW) when viewed from the shaft end. Always verify your fan blade pitch to ensure proper airflow direction before installation.
Can I use this motor in applications other than refrigeration?
Yes, while optimized as a refrigeration motor, the Fasco D672B is frequently used in ventilation fan motors and small centrifugal blowers where a 1/15 HP 1550 RPM 3.3-frame motor is specified.
Does this motor require a capacitor?
No, the D672B is a shaded pole motor design, which does not require a start or run capacitor, simplifying the electrical lead connection process on-site.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
