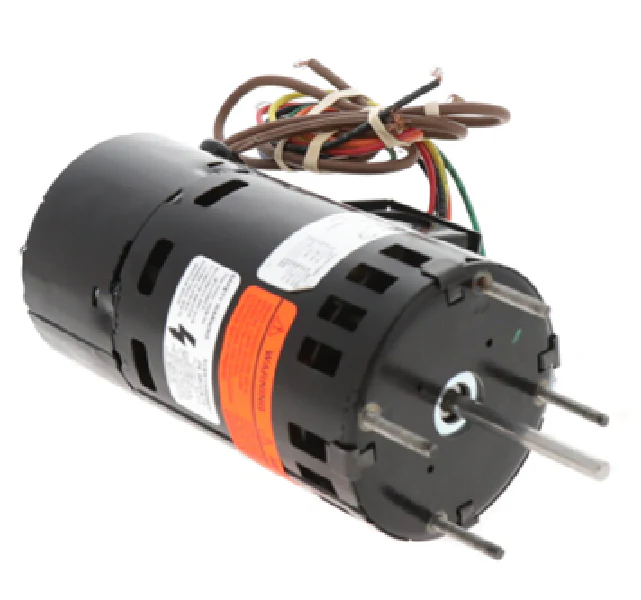

Fasco D653 Motor
The Fasco D653 Motor is a high-efficiency 3.3-inch frame shaded pole motor designed for demanding commercial HVACR applications. This 1/20 HP motor features a dual-voltage design, operating at 230/460V at 1550 RPM, making it a versatile drop-in replacement for various fan-duty cycles. With its open ventilated (OAO) enclosure and sleeve bearing system, this unit ensures optimal heat dissipation and quiet operation in continuous-duty environments. The CCWSE rotation and standard 5/16-inch diameter shaft allow for seamless integration with existing blower assemblies and fan blades. When replacing a Fasco D653, ensure the capacitor requirements and mounting dimensions align with your specific air handler or refrigeration unit to maintain system pressure and CFM performance. This motor is engineered for reliability in high-cycle scenarios where multi-voltage motors are required to simplify inventory and field installation.
Key Benefits:- Dual Voltage Capability: Operates on both 230V and 460V systems for increased field flexibility.
- Precision Alignment: 3.3-inch frame diameter ensures compatibility with standard HVAC blower motor brackets.
- Thermal Protection: Internal automatic reset protects the windings from over-current or locked-rotor conditions.
- Extended Service Life: High-quality sleeve bearings reduce mechanical friction in indoor air movement applications.
- Efficient Performance: Optimized 1550 RPM output maintains consistent airflow across evaporator or condenser coils.
What is the frame size and mounting for the Fasco D653?
The Fasco D653 utilizes a standard 3.3-inch diameter frame, typical for small centrifugal blowers and refrigeration fans, often mounted via studs or belly band brackets.
Can this motor replace a 115V shaded pole motor?
No, the D653 is specifically rated for 230/460V. Using this motor on a 115V circuit will result in failure to start or significant torque loss.
Is the rotation reversible on the Fasco D653 Motor?
This specific model is configured for CCWSE (Counter-Clockwise Shaft End) rotation. Always verify the fan blade pitch matches the motor rotation to prevent overheating.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
