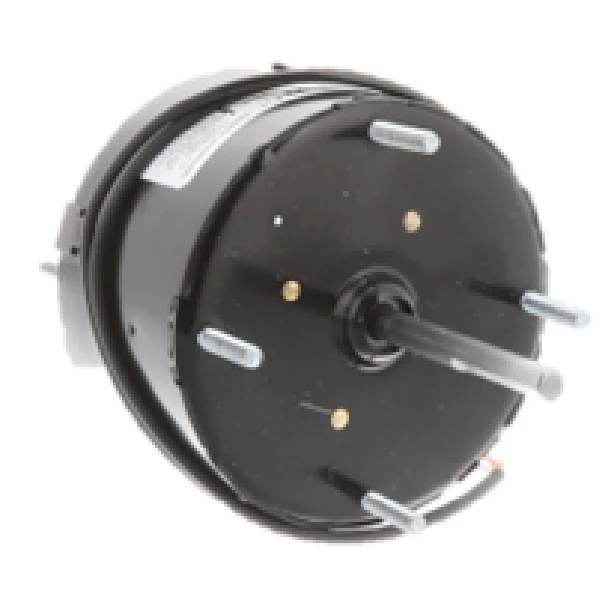

Fasco D602 Motor
The Fasco D602 Motor is a high-reliability, 1/50 HP shaded pole motor designed specifically for demanding HVACR air-moving applications. Engineered with a 3.3-inch frame diameter, this 115V single-speed unit operates at 1500 RPM, making it a standard replacement for various furnace fans, exhaust blowers, and commercial refrigeration units. The Totally Enclosed Air Over (TEAO) enclosure ensures the internal components remain protected from airborne contaminants while utilizing the airflow from the fan blade for optimal thermal management. Featuring sleeve bearings and a 1/4" diameter shaft with a flat, the D602 supports all-angle mounting via extended studs on both ends (#8-32 thread). With a 0.9 Amp draw and automatic thermal protection, this Fasco blower motor provides consistent performance in a compact 2-3/16" shell length. For field installations, the 12-inch leads and molded plug simplify wiring, ensuring a professional and efficient swap-out on the job site.
Key Benefits- All-Angle Mounting: Extended studs on both the shaft and lead ends allow for flexible orientation in tight equipment housings.
- TEAO Enclosure: The totally enclosed air over design prevents dust and moisture from entering the motor windings, extending service life in kitchen or mechanical room environments.
- Automatic Reset: Integrated thermal overload protection prevents stator burnout during restricted airflow conditions.
- Broad Compatibility: Standard 3.3" frame and 1500 RPM spec make this a common Fasco D602 cross-reference for numerous OEM blower assemblies.
- What is the rotation direction for the D602? This motor is CW Shaft End (CWSE), meaning it rotates clockwise when viewing the shaft side.
- Can I use this motor to replace a 0.7 Amp unit? Yes, as long as the physical dimensions and RPM match, a 0.9 Amp motor is a safe replacement for a lower amp-rated unit.
- Does this motor require a run capacitor? No, being a shaded pole motor design, the D602 does not use a capacitor for starting or running.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
