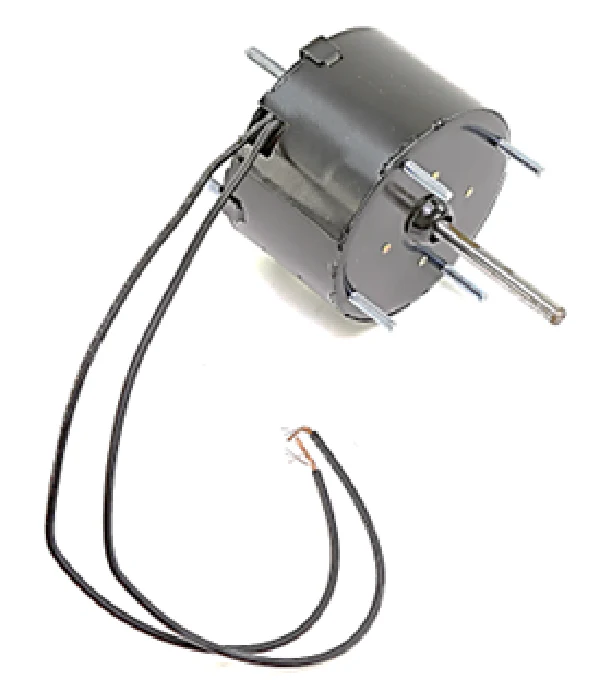

Fasco D601 Motor
The Fasco D601 Motor is a high-performance 1/50 HP 1500 RPM shaded pole motor designed for constant-duty HVAC and refrigeration applications. Featuring a 3.3-inch diameter and a 115V single-phase electrical configuration, this unit is a standard replacement for many fan and blower motors. This model is engineered with a Totally Enclosed Air-Over (TEAO) enclosure, ensuring internal components are shielded from dust and moisture while utilizing moving air for cooling. For technicians in the field, the CCWSE rotation (counter-clockwise shaft end) and 1/4" x 2-1/4" shaft with a flat make it a versatile choice for direct-drive setups. The motor features automatic thermal protection and sleeve bearings for quiet, long-term operation in ambient temperatures up to 40°C. With a 2.85" bolt circle and extended studs on both ends, the Fasco D601 offers flexible stud mount installation, and the leads are equipped with a molded plug for streamlined wiring.
Key Benefits- Broad Compatibility: Standard 3.3-inch frame size serves as a direct cross-reference for Dayton 38N568 and various OEM blower assemblies.
- Durable Construction: The shaded pole motor design with steel frame material is built for continuous duty cycles without overheating.
- Installation Versatility: Extended 8-32 studs on both ends allow for easy mounting; studs can be trimmed to fit specific housing requirements.
- Reliable Performance: 0.9 Amp draw and Class B insulation provide efficient power delivery for small exhaust fans and air movers.
What is the rotation of the Fasco D601?
The motor is rated for CCWSE rotation (Counter-Clockwise Shaft End), which is equivalent to Clockwise Lead End (CWLE).
Can the shaft or studs be modified?
Yes, the 1/4 inch diameter shaft can be shortened, and the mounting studs can be cut off if they are not required for your specific bracket or housing.
Does this motor require a capacitor?
No, the Fasco D601 is a shaded pole motor and does not require a start or run capacitor for operation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
