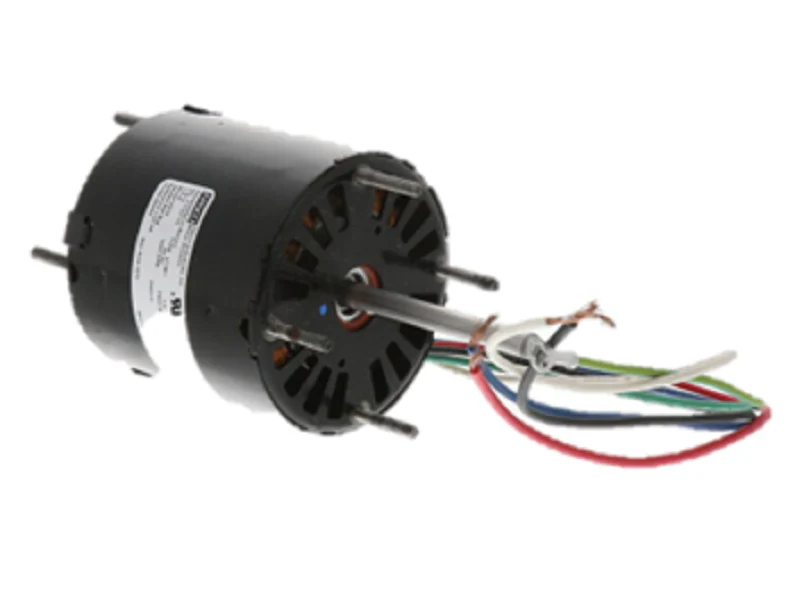

Fasco D535 Motor
The Fasco D535 Motor is a professional-grade 1/25 HP, 115V shaded pole motor designed for high-demand fan and blower applications. Operating at 1550 RPM, this 3.3-inch diameter unit is ideal for direct drive blower systems in residential and light commercial HVAC setups. Engineered with an Open Air Over (OAO) enclosure, it relies on the moving airstream for cooling, ensuring reliable performance in continuous duty cycles. This 3-speed motor features ball bearings for reduced friction and extended service life in vertical or horizontal orientations. The 5/16 x 2.5 inch shaft with a flat side simplifies pulley or blade attachment, while the thermally protected design prevents winding failure during over-current events. Contractors often utilize the Fasco D535 as a direct OEM replacement motor for various ventilation units due to its standard 4-bolt stud mounting and CCWSE rotation (Counter-Clockwise Shaft End). This motor is a dependable choice for restoring airflow in air handlers and exhaust systems.
Key Benefits
- Versatile 3-Speed Operation: Allows for precise airflow calibration to match specific system requirements.
- Hardened Ball Bearings: Provides superior durability compared to sleeve bearings, especially in high-temperature environments.
- Standardized Mounting: Features extended studs on both ends for seamless integration into most 3.3-inch frame brackets.
- Thermal Overload Protection: Automatic reset functionality protects the internal windings from overheating.
- Broad Compatibility: Functions as a reliable 115 volt replacement for numerous shaded pole ventilation motors.
Common Questions
What are the primary cross-references for the Fasco D535?
This motor is a common replacement for part numbers such as JA2P072, JB2N057, and 5KSM59ES1557. Always verify your existing motor's frame size and rotation before installation.
Can this motor be used in a 230V system?
No, the D535 is specifically wound for 115V 60Hz operation. Applying higher voltage will cause immediate failure and is a safety hazard.
What does CCWSE rotation mean?
It stands for Counter-Clockwise Shaft End. This means the shaft rotates counter-clockwise when you are looking directly at the shaft side of the motor.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
