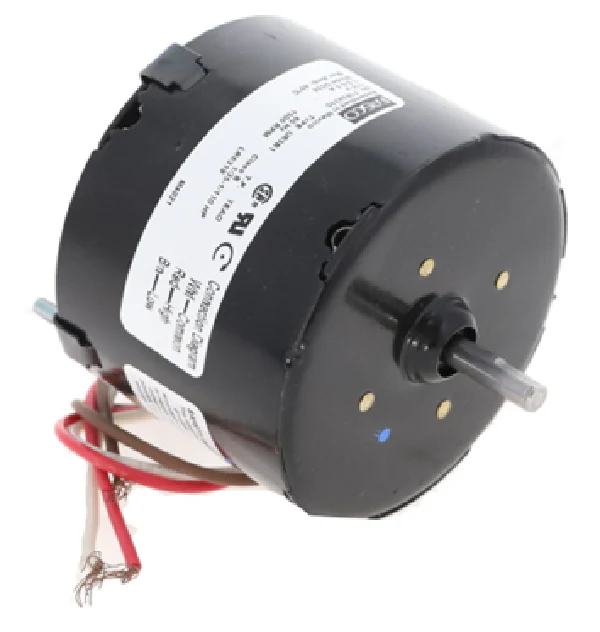

Fasco D534 Motor
The Fasco D534 is a professional-grade 1550 RPM blower motor designed for compatibility with a wide range of HVAC configurations requiring a 3.3-inch diameter motor profile. Operating at 115V, this shaded pole motor provides a versatile output range from 1/35 to 1/100 HP, making it a reliable choice for field technicians servicing air handlers, exhaust units, and centrifugal blowers. Industrial-grade sleeve bearings ensure consistent operation and durability under standard duty cycles. The CCWSE rotation (Counter-Clockwise Shaft End) and 5/16" x 2-1/4" shaft dimensions allow for seamless integration with existing fan blades and blower wheels. This motor is thermally protected and features standard mounting configurations for rapid field installation. Contractors should verify the amperage draw and frame size to ensure this 115V replacement motor meets the precise mechanical load requirements of the original equipment. Its design is intended for high-uptime environments where maintaining proper static pressure and airflow is paramount.
Key Benefits for Technicians
- Universal 3.3-inch Frame: Fits standard brackets across numerous residential and light commercial fan assemblies.
- Thermal Protection: Features internal automatic reset thermal overload protection to prevent winding failure during restricted airflow conditions.
- Application Versatility: The 1/35 - 1/100 HP range allows this motor to serve as a high-quality substitute for various lower-milliwatt fractional motors.
- Sleeve Bearing Design: Optimized for quiet operation in noise-sensitive environments like offices or residential living spaces.
- Simple Wiring: Standard 115V lead configuration facilitates quick electrical termination without complex capacitor matching.
Common Questions
What is the rotation of the Fasco D534?
This motor is CCWSE (Counter-Clockwise Shaft End), which is standard for most small-diameter fan and blower applications.
Can this replace a multi-speed motor?
The Fasco D534 is a single-speed motor. If replacing a multi-speed unit, it must be wired to the specific lead corresponding to the 1550 RPM requirement.
What are the shaft dimensions for this 115V motor?
The shaft measures 5/16 inches in diameter and is 2-1/4 inches long, making it compatible with standard hub sizes for 3.3-inch frame motors.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
