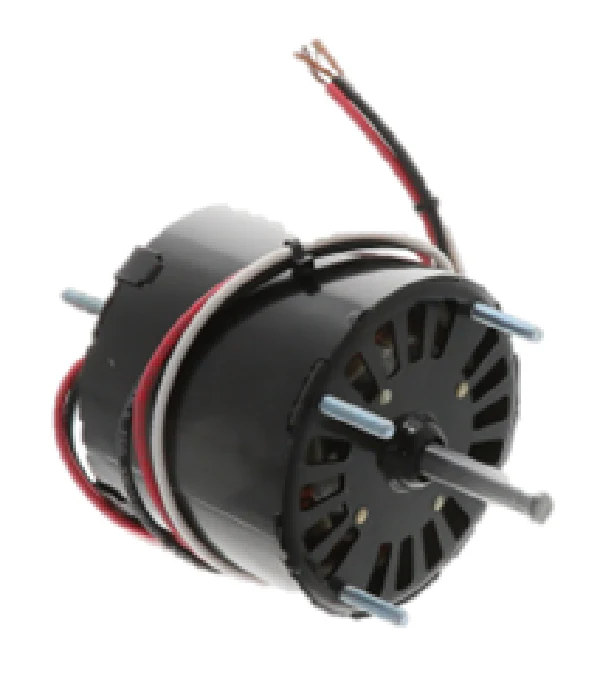

Fasco D532 Motor
The Fasco D532 motor is a professional-grade, 3.3-inch diameter shaded pole motor engineered for reliable performance in HVAC blowing and cooling applications. Operating at 115V with a 2-speed configuration, this motor provides versatility for systems requiring 1/30 HP or 1/112 HP outputs. As a thermally protected replacement fan motor, it features an open ventilated air over (OAO) design to maintain optimal operating temperatures during high-duty cycles. The clockwise shaft end (CWSE) rotation and 5/16 inch diameter shaft with a flat make it a direct-fit solution for many residential and light commercial units, including those referencing Dayton 3M549 or Dayton 38N542. Utilizing sleeve bearings for quiet operation and specialized extended stud mounting, this 1550 RPM motor ensures straightforward installation and long-term mechanical stability in demanding air-moving environments.
Key Benefits
- Dual-Speed Versatility: Supports both 1/30 HP and 1/112 HP settings to match specific airflow requirements.
- Thermal Overload Protection: Includes automatic reset protection to prevent shaded pole motor failure during overheating conditions.
- Standardized Mounting: Features extended studs and a 2.84-inch bolt circle for efficient integration into existing bracketry.
- Quiet Operation: Equipped with precision-engineered sleeve bearings to reduce vibration and audible noise in refrigeration fan setups.
- High-Efficiency Cooling: The Open Air Over (OAO) enclosure facilitates maximum heat dissipation through the system's own airflow.
Common Questions
What are the wiring specifications for the Fasco D532?
This 115V motor typically utilizes a 22-inch lead length with 1/16 inch thick insulation, facilitating easier routing through tight equipment cabinets.
Is the shaft rotation reversible?
No, the Fasco D532 is designed with a fixed Clockwise (CW) rotation when viewed from the shaft end. Always verify your specific fan blade pitch before installation.
Can this motor replace a Dayton 3M549?
Yes, the technical specifications of the Fasco D532, including the 3.3-inch frame and 1550 RPM, make it a common cross-reference for the Dayton 3M549 and Dayton 38N542 models.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
