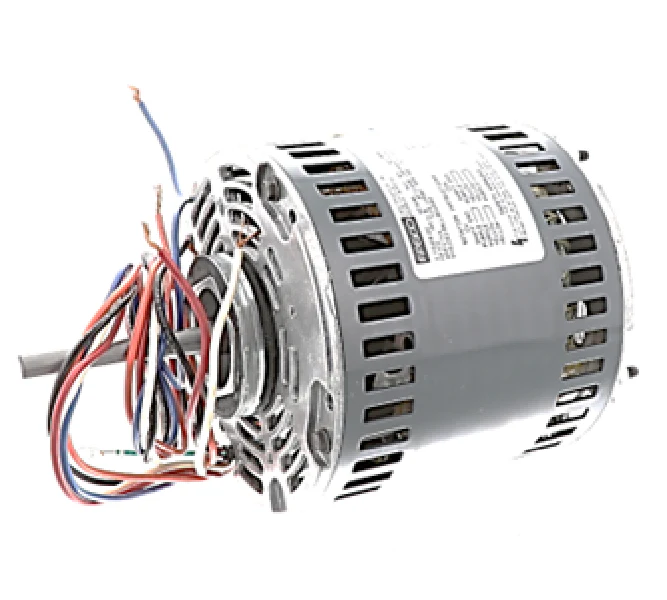

Fasco D487 Motor
The Fasco D487 Motor is a high-performance PSC condenser fan motor engineered for reliability in demanding HVAC and refrigeration environments. This 1/10 HP motor features a versatile 115/208-230V multi-voltage rating, making it a critical stock item for technicians servicing residential and light commercial heat pump operations. Operating at a consistent 1550 RPM with a 42-frame diameter, the D487 utilizes an open air over (OAO) enclosure to ensure maximum heat dissipation during continuous duty cycles. Built with professional-grade ball bearings and a 3/8-inch diameter shaft with a flat, this reversible rotation motor provides a flexible solution for various fan blade configurations. The thermally protected design prevents winding burnout under high ambient conditions, while the 5-inch diameter and extended studs facilitate seamless integration into existing mounting brackets or belly bands.
Key Benefits- Multi-Voltage Compatibility: Supports 115V and 208-230V configurations, reducing the need to carry multiple motor SKUs on the truck.
- Enhanced Durability: Equipped with ball bearings for extended service life in vertical or horizontal mounting positions compared to standard sleeve bearings.
- Standardized Fit: The 42-frame (5-inch diameter) and 3.15-inch shaft extension ensure compatibility with a wide range of OEM condenser units.
- Safety Features: Includes automatic thermal overload protection to safeguard the motor against electrical surges and overheating.
- Application Versatility: Specifically designed as a heat pump motor and condenser fan motor for year-round high-duty performance.
What is the correct replacement capacitor for the Fasco D487?
The D487 typically requires a 5 MFD / 370V run capacitor. Always verify the rating on the motor nameplate before installation to ensure optimal torque and efficiency.
Can I change the rotation of this motor in the field?
Yes, the Fasco D487 is a reversible rotation motor. It features simplified lead switching to match the specific airflow requirements of the condenser unit you are servicing.
What are the physical dimensions for mounting?
This motor has a 5-inch motor diameter (42-frame) with an 8.49-inch overall length. It features extended studs opposite the shaft end for easy thru-bolt mounting.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $247.28
-65%$247.28
$86.55Fasco D487 Motor
The Fasco D487 Motor is a high-performance PSC condenser fan motor engineered for reliability in demanding HVAC and refrigeration environments. This 1/10 HP motor features a versatile 115/208-230V multi-voltage rating, making it a critical stock item for technicians servicing residential and light commercial heat pump operations. Operating at a consistent 1550 RPM with a 42-frame diameter, the D487 utilizes an open air over (OAO) enclosure to ensure maximum heat dissipation during continuous duty cycles. Built with professional-grade ball bearings and a 3/8-inch diameter shaft with a flat, this reversible rotation motor provides a flexible solution for various fan blade configurations. The thermally protected design prevents winding burnout under high ambient conditions, while the 5-inch diameter and extended studs facilitate seamless integration into existing mounting brackets or belly bands.
Key Benefits- Multi-Voltage Compatibility: Supports 115V and 208-230V configurations, reducing the need to carry multiple motor SKUs on the truck.
- Enhanced Durability: Equipped with ball bearings for extended service life in vertical or horizontal mounting positions compared to standard sleeve bearings.
- Standardized Fit: The 42-frame (5-inch diameter) and 3.15-inch shaft extension ensure compatibility with a wide range of OEM condenser units.
- Safety Features: Includes automatic thermal overload protection to safeguard the motor against electrical surges and overheating.
- Application Versatility: Specifically designed as a heat pump motor and condenser fan motor for year-round high-duty performance.
What is the correct replacement capacitor for the Fasco D487?
The D487 typically requires a 5 MFD / 370V run capacitor. Always verify the rating on the motor nameplate before installation to ensure optimal torque and efficiency.
Can I change the rotation of this motor in the field?
Yes, the Fasco D487 is a reversible rotation motor. It features simplified lead switching to match the specific airflow requirements of the condenser unit you are servicing.
What are the physical dimensions for mounting?
This motor has a 5-inch motor diameter (42-frame) with an 8.49-inch overall length. It features extended studs opposite the shaft end for easy thru-bolt mounting.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
