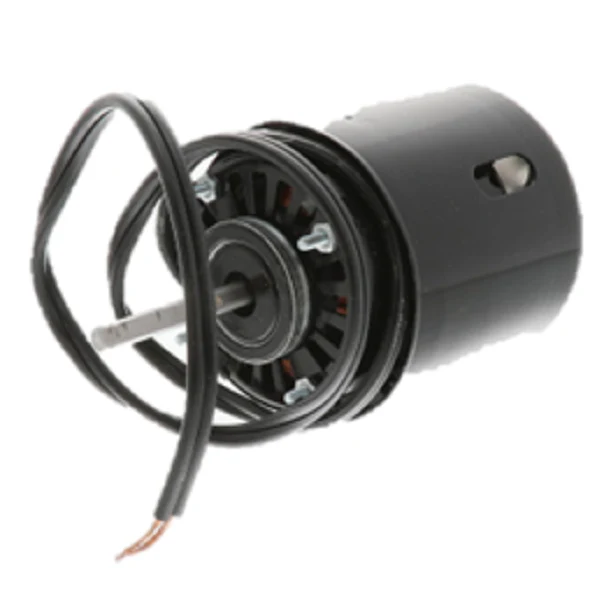

Fasco D473 Motor
The Fasco D473 Motor is a high-performance 1/20 HP refrigeration fan motor engineered for demanding commercial HVACR applications. Operating at 115V and 1550 RPM, this 4-pole shaded pole motor provides reliable air-over duty in walk-in coolers, beverage dispensers, and display cases. Built with a 3.3-inch frame diameter and sleeve bearings, the D473 is a direct GE 11 frame replacement motor, ensuring seamless integration into existing systems. The unit features counterclockwise shaft end (CCWSE) rotation and is thermally protected with an automatic reset to prevent overheating during continuous operation.
Designed for professional contractors, this motor includes extended studs on the shaft end for versatile mounting. The 5/16-inch diameter shaft measures 2.65 inches and includes a flat and groove for secure fan blade attachment. With an open air over (OAO) enclosure and Class B insulation, the D473 is rated for ambient temperatures up to 40°C. Its robust steel construction and 2.0 amp full load rating make it a standard choice for maintaining critical refrigeration temperatures in commercial environments.
Key Benefits
- Universal Compatibility: Serves as a primary cross-reference for GE 11 frame refrigeration motors, reducing truck stock requirements.
- Industrial Durability: Features an automatic thermal overload protector and sleeve bearings designed for long-cycle reliability in cold storage.
- Precision Mounting: Equipped with #8-32 extended studs and a 2.84-inch bolt circle, allowing for quick installation in standard brackets.
- Optimized Airflow: The 1550 RPM single-speed configuration is tuned for consistent CFM delivery across evaporator and condenser coils.
Common Questions
What is the correct rotation for the Fasco D473?
This motor is CCWSE (Counterclockwise Shaft End). Always verify rotation by viewing the motor from the shaft side to ensure proper directional airflow for your specific refrigeration unit.
Can the D473 replace a 1/20 HP motor with different mounting?
The D473 uses extended stud mounting. If your original motor uses a belly band or resilient ring, ensure the 3.3-inch frame diameter matches, though the studs are the primary mounting method for this 11-frame replacement.
Is this motor suitable for outdoor condenser units?
While it is thermally protected, the Open Air Over (OAO) enclosure is specifically designed for indoor refrigeration applications or protected compartments where the moving air stream provides necessary cooling to the motor windings.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
