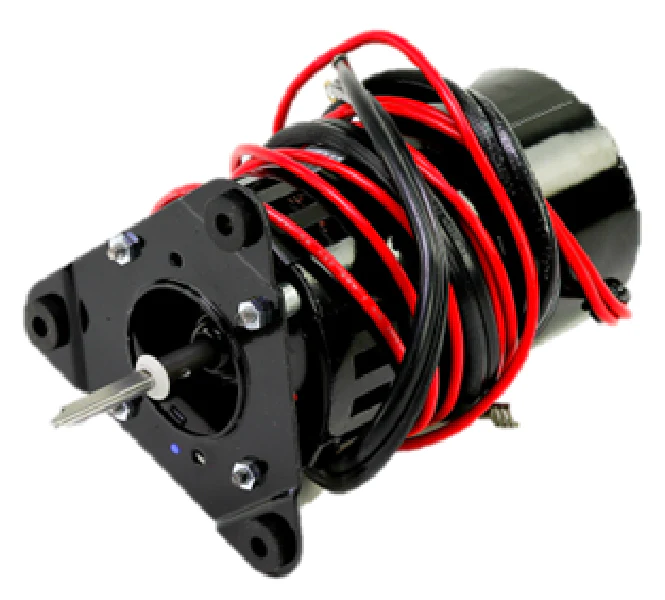

Fasco D418 Motor
The Fasco D418 is a high-performance shaded pole draft inducer motor designed for critical flue exhaust and draft booster blower applications. This 3.3-inch diameter motor operates at 115V with a 1/50 HP output, delivering a steady 1500 RPM to ensure optimal venting efficiency. Built for survival in demanding environments, it features a thermally protected design and an Open Air Over (OAO) enclosure that facilitates superior heat dissipation during continuous operation. The single-speed motor utilizes ball bearings to minimize friction and extend the operational life of the rotating assembly, while the 1/4-inch diameter stainless steel shaft with a 3-inch extension provides the necessary reach and corrosion resistance for flue gas environments.
For contractors performing field replacements, the Fasco D418 motor serves as a reliable direct OEM replacement for numerous draft inducer assemblies. Its CWSE (Clockwise Shaft End) rotation and lug mounting configuration allow for streamlined installation in various residential and commercial heating systems. By utilizing a 115V draft inducer motor with these specific technical parameters, technicians can restore proper static pressure and combustion airflow, ensuring the appliance meets its original design specifications for safety and performance.
Key Benefits
- Industrial Durability: Engineered with a robust steel frame and double-sealed ball bearings for quiet, long-term reliability.
- Enhanced Safety: Includes internal thermal protection to prevent winding failure during restricted airflow conditions.
- Universal Fit: Standard 3.3-inch frame and lug bracket mounting simplify the retrofit process for diverse HVAC units.
- Corrosion Resistance: Features a stainless steel shaft to withstand the high-moisture environment typical of draft booster blower ports.
Common Questions
Can I use the Fasco D418 to replace a motor with a different RPM rating?
It is critical to match the 1500 RPM rating as closely as possible. Using a motor with significantly different speeds can lead to improper venting or pressure switch failures in the flue system.
Is this motor reversible?
No, the Fasco D418 is designed with a fixed clockwise rotation (CWSE). Always verify the rotation requirements of your specific blower wheel before installation.
What is the frame size of this motor?
This is a 3.3-inch diameter motor, which is the industry standard for most small draft inducers and flue exhaust fans.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
