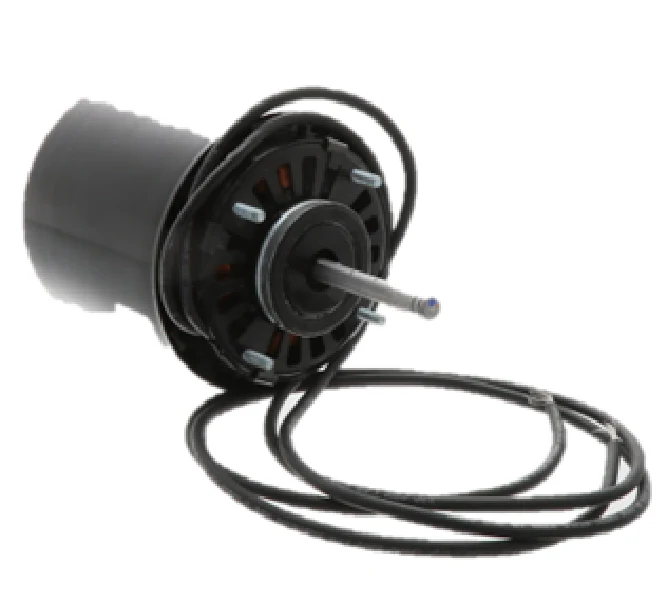

Fasco D417 Motor

The Fasco D417 Motor is a high-performance 1/20 HP refrigeration motor designed for demanding commercial applications. Operating at 208-230V and 1550 RPM, this single-speed, shaded pole motor is a reliable solution for maintaining airflow in condenser fans, walk-in coolers, and refrigerated display cases. As a 3.3-inch diameter motor with an Open Air Over (OAO) enclosure, it provides efficient cooling by utilizing the system's own air stream to dissipate heat during continuous operation. The 1.1-amp draw ensures energy-efficient performance without sacrificing torque.

For technicians performing field replacements, the Fasco D417 features an extended 5/16" x 2-1/2" shaft and a CCWSE rotation (Counter-Clockwise Shaft End). Its rolled steel construction and internal thermal overload protection are engineered to handle the thermal cycling common in HVACR environments. This shaded pole replacement motor is compatible with various OEM units, often serving as a direct drop-in for 11-frame refrigeration motors and evaporative cooler assemblies. Its stud mount configuration allows for a secure, universal installation in standard brackets.

Key Benefits:

• Industrial Durability: Built with a rolled steel frame and thermal protection to prevent winding failure during high-head pressure conditions.
• High-Speed Airflow: Delivers 1550 RPM consistently, ensuring optimal heat exchange in refrigeration condensers.
• Contractor-Grade Compatibility: Standard 3.3" diameter and 5/16" shaft diameter make it a versatile HVAC replacement motor for multiple brands.
• Efficient Operation: Rated at 1.1 amps, providing a balance of low energy consumption and reliable startup torque.

Common Questions:

• What is the rotation of the Fasco D417? This motor is CCWSE (Counter-Clockwise facing the shaft end). Always verify your fan blade pitch before installation.
• Can this motor replace a unit bearing motor? Yes, the D417 is often used to replace unit bearing motors in refrigeration equipment, though mounting adjustments may be required.
• Is this motor suitable for outdoor condenser units? Yes, provided it is used in an Air Over application where the fan blade pulls air over the motor housing.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
