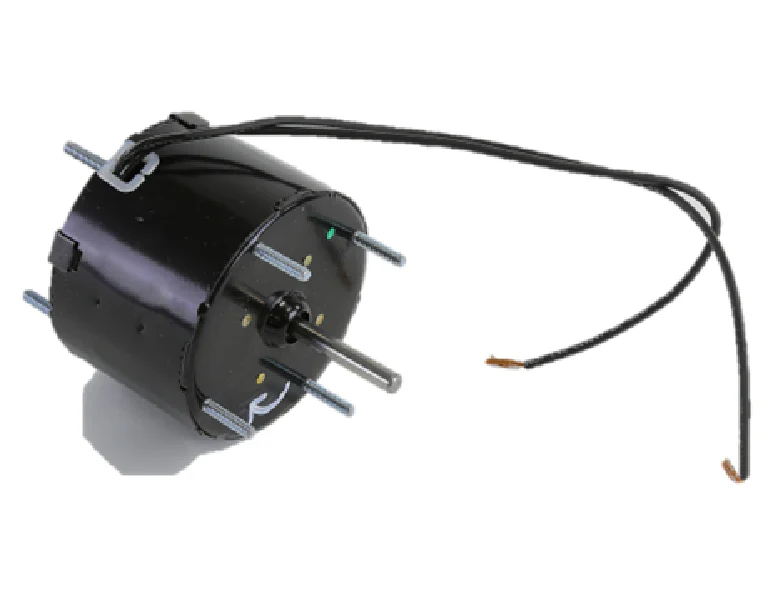

Fasco D402 Motor
When you're spec-ing a replacement for high-speed exhaust or air-moving applications, the Fasco D402 Motor is a rugged, industry-standard 3.3-inch diameter solution. This 1/60 HP blower motor is engineered with a shaded pole design and operates at a 115V, single-phase 3000 RPM output, making it an ideal drop-in for kitchen exhaust fans, small centrifugal blowers, and various shave-pole motor replacements. The totally enclosed air over (TEAO) enclosure ensures the internal components stay protected from airborne contaminants, while the sleeve bearing system provides smooth, quiet operation in continuous-duty cycles.
This general purpose motor features extended studs on both the shaft and lead ends for versatile mounting, and its 1/4-inch diameter shaft with a flat allows for secure blower wheel attachment. Whether you are performing a furnace blower motor replacement on a small-scale unit or servicing an HVAC ventilation fan, the D402 delivers the thermal protection and Class B insulation required for professional-grade reliability in 40°C ambient environments. The clockwise rotation (viewed from the shaft end) matches common Nutone, Broan, and Dayton configurations often found in the field.
Key Benefits- High-Speed Performance: Delivers 3000 RPM at 115V for optimal CFM in small-diameter blower housings.
- Durable Enclosure: The totally enclosed frame prevents grease and dust buildup within the motor windings.
- Universal Mounting: Features extended 2.85-inch bolt circle studs for easy installation in existing brackets.
- Thermal Protection: Internal automatic reset overload prevents winding failure during restricted airflow conditions.
- Compact Profile: 3.3-inch frame diameter allows for installation in tight mechanical plenums and appliance cabinets.
What are the common cross-references for the Fasco D402?
This motor is a frequent replacement for Packard 41402, Nutone 26758, and various Dayton 3.3-inch shaded pole models commonly used in residential ventilation.
Can this motor be used in variable speed applications?
While the D402 is a single-speed motor, its shaded pole design allows for some speed modulation when used with compatible solid-state controllers, though performance is optimized at its rated 3000 RPM.
Which direction does the shaft rotate?
The rotation is Clockwise Shaft End (CWSE), which is standard for most right-hand discharge blowers used in exhaust systems.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
