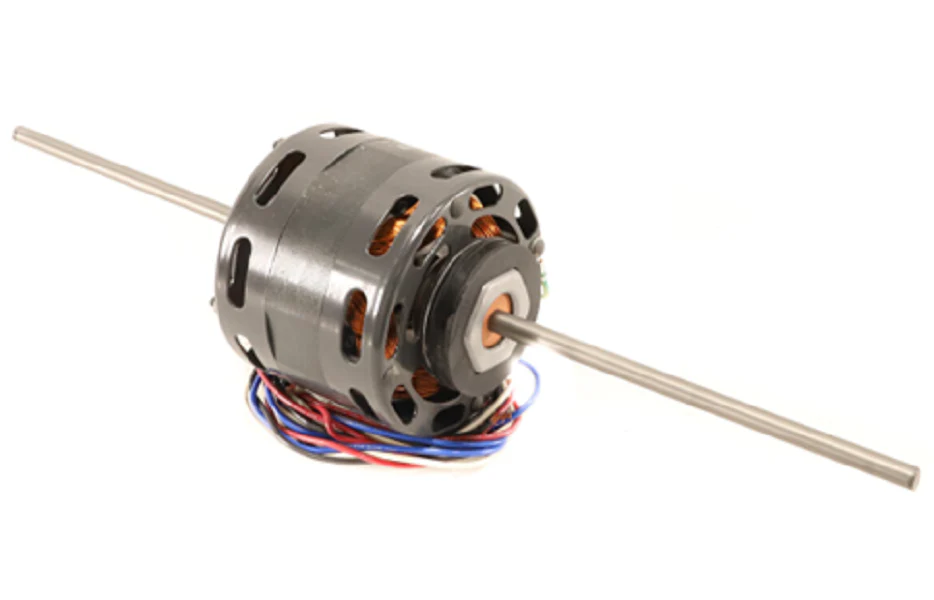

Fasco D336 Motor
The Fasco D336 Motor is a high-performance, 3-speed HVAC motor designed for precision air movement in fan coil units, heating systems, and air conditioning applications. Engineered as a shaded pole motor with a 4.4-inch frame diameter, this unit provides versatile power outputs of 1/10, 1/15, and 1/25 HP at a rated speed of 1550 RPM. Its double shaft design, featuring 3/8-inch diameters with flats, allows for flexible fan blade or blower wheel configurations across various OEM replacements.
This 115V HVAC motor utilizes an Open Air Over (OAO) enclosure, requiring the driven airflow for cooling during continuous operation. With a robust Class B insulation rating and integrated thermal protection, the D336 is built to handle ambient temperatures up to 40°C. The inclusion of resilient mounting rings and 60-inch leads ensures a straightforward installation for contractors performing field service on multi-speed blower assemblies.
Key Benefits for Technicians
- Multi-HP Versatility: Replaces 1/10, 1/15, and 1/25 HP motors, reducing the need to carry multiple stock units on the truck.
- Extended Connectivity: Equipped with 60-inch lead lengths to simplify wiring in large cabinet fan coils.
- Simplified Mounting: Features resilient rings for vibration dampening and standard 4.4-inch diameter spacing.
- Reliable Lubrication: Sleeve bearing design provides quiet operation and long-term service in residential and light commercial settings.
Common Questions
What is the shaft rotation for the Fasco D336?
The D336 is a double-shaft motor; rotation is typically determined by identifying the lead end (LE) or opposite lead end (OLE) relative to your blower housing requirements.
Can this motor be used in a vertical application?
As an Open Air Over motor with sleeve bearings, it is optimized for horizontal mounting where the airflow directly cools the motor windings.
Does the motor require a capacitor?
No, the Fasco D336 is a shaded pole motor and does not require a start or run capacitor for operation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
