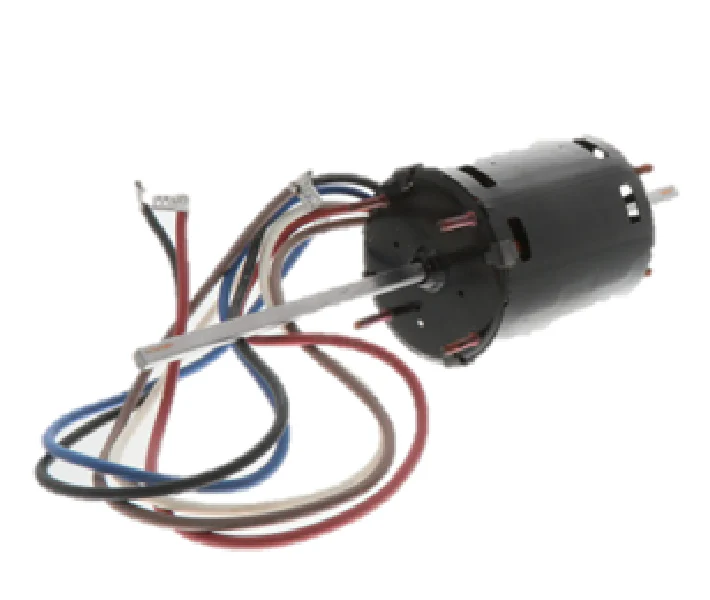

Fasco D326 Motor
The Fasco D326 Motor is a high-performance 3.3-inch frame diameter PSC (Permanent Split Capacitor) unit designed for demanding HVAC 3-speed blower applications and window air conditioning units. Operating at 115V with a 1550 RPM rated speed, this versatile multi-HP replacement motor provides 1/10, 1/20, and 1/25 HP outputs to match specific system requirements. The motor features a double shaft configuration (5-1/2" x 5/16" x 3") with a flat, allowing for precise wheel alignment in dual-blower setups. Built for durability, it includes ball bearings and automatic thermal protection to handle continuous duty in OAO (Open Air Over) environments. The extended stud mount design (2.85" bolt circle) offers flexible installation, and the motor is reversible to accommodate various airflow directions. For optimal performance, this 4-pole motor requires a 4 MFD 370V capacitor. Its robust steel construction and Class B insulation make it a reliable choice for technical upgrades and direct-drive replacements in commercial or residential equipment.
Key Benefits- Multi-HP Versatility: Engineered to cover 1/10, 1/20, and 1/25 HP loads, reducing the need for multiple stock SKUs.
- Precision Airflow Control: Features a 3-speed tap system (1.9/1.8/1.5 Amps) for fine-tuned CFM delivery.
- Industrial Build Quality: Equipped with ball bearings for reduced friction and extended component life in high-heat conditions.
- Universal Mounting: Extended studs on both ends simplify installation in tight blower housings or window AC chassis.
- Thermal Safety: Built-in automatic reset thermal protector prevents winding failure during over-current events.
Does this motor include the run capacitor?
While some versions may ship with one, this motor typically requires a 4 MFD / 370 VAC capacitor for operation. It is recommended to install a new capacitor to ensure proper torque and motor longevity.
Can the rotation be changed in the field?
Yes, the Fasco D326 is electrically reversible. Check the lead wire diagram on the motor housing to switch between CW and CCW rotation as required by your blower housing.
How do I handle the extra-long mounting studs?
The extended studs are designed for universal fit. If they interfere with the fan blade or housing, they can be safely cut down to the desired length after the motor is secured.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $248.16
-65%$248.16
$86.86Fasco D326 Motor
The Fasco D326 Motor is a high-performance 3.3-inch frame diameter PSC (Permanent Split Capacitor) unit designed for demanding HVAC 3-speed blower applications and window air conditioning units. Operating at 115V with a 1550 RPM rated speed, this versatile multi-HP replacement motor provides 1/10, 1/20, and 1/25 HP outputs to match specific system requirements. The motor features a double shaft configuration (5-1/2" x 5/16" x 3") with a flat, allowing for precise wheel alignment in dual-blower setups. Built for durability, it includes ball bearings and automatic thermal protection to handle continuous duty in OAO (Open Air Over) environments. The extended stud mount design (2.85" bolt circle) offers flexible installation, and the motor is reversible to accommodate various airflow directions. For optimal performance, this 4-pole motor requires a 4 MFD 370V capacitor. Its robust steel construction and Class B insulation make it a reliable choice for technical upgrades and direct-drive replacements in commercial or residential equipment.
Key Benefits- Multi-HP Versatility: Engineered to cover 1/10, 1/20, and 1/25 HP loads, reducing the need for multiple stock SKUs.
- Precision Airflow Control: Features a 3-speed tap system (1.9/1.8/1.5 Amps) for fine-tuned CFM delivery.
- Industrial Build Quality: Equipped with ball bearings for reduced friction and extended component life in high-heat conditions.
- Universal Mounting: Extended studs on both ends simplify installation in tight blower housings or window AC chassis.
- Thermal Safety: Built-in automatic reset thermal protector prevents winding failure during over-current events.
Does this motor include the run capacitor?
While some versions may ship with one, this motor typically requires a 4 MFD / 370 VAC capacitor for operation. It is recommended to install a new capacitor to ensure proper torque and motor longevity.
Can the rotation be changed in the field?
Yes, the Fasco D326 is electrically reversible. Check the lead wire diagram on the motor housing to switch between CW and CCW rotation as required by your blower housing.
How do I handle the extra-long mounting studs?
The extended studs are designed for universal fit. If they interfere with the fan blade or housing, they can be safely cut down to the desired length after the motor is secured.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
