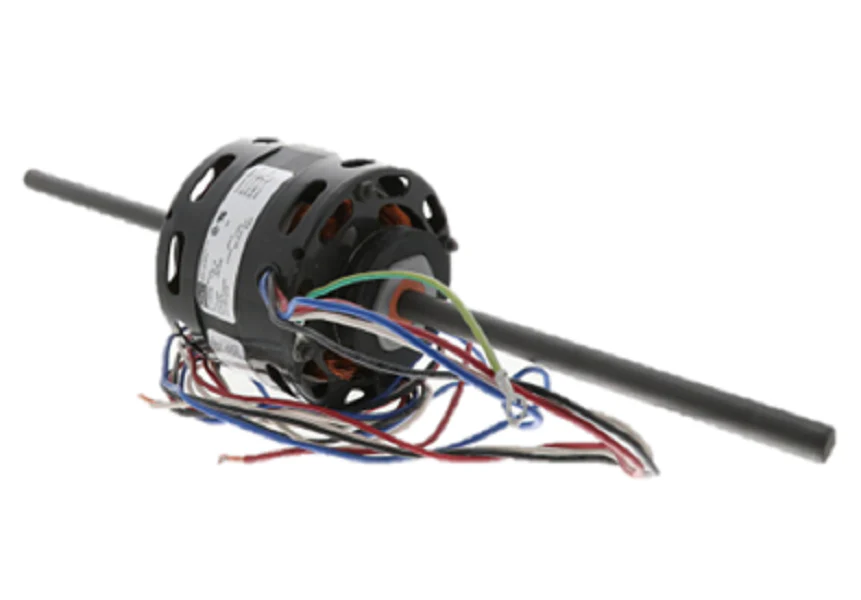

Fasco D236 Motor
The Fasco D236 Motor is a high-efficiency shaded pole HVAC motor engineered for demanding commercial and industrial air-moving applications. This 3.3-inch diameter motor features a multi-horsepower design rated for 1/10-1/15-1/25 HP at 115 volts, operating at a steady 1550 RPM. Designed with a resilient open ventilated enclosure, the D236 facilitates optimal heat dissipation during continuous duty cycles. It incorporates sleeve bearings and is thermally protected to prevent winding failure during stall conditions or excessive ambient temperatures. The motor utilizes a 5/16-inch diameter shaft and standard 4-bolt mounting on both ends, ensuring compatibility with a wide array of blowers and fans. As a versatile Fasco replacement motor, it is frequently used to replace OEM units in evaporative coolers, exhaust fans, and small air handlers, providing reliable mechanical commutation and a high starting torque profile necessary for residential and light commercial HVACR service work.
- Multi-Tap Versatility: Direct replacement for 1/10, 1/15, and 1/25 HP applications, reducing inventory requirements for service calls.
- Standardized Frame: Features a 3.3-inch frame diameter with CCW lead end rotation for seamless integration into existing blower housings.
- High Thermal Stability: Class B insulation and an automatic reset thermal protector ensure safe operation under varying load conditions.
- Precision Engineering: The 5/16" x 2.25" shaft is machined for precision fit with standard fan blades and blower wheels.
Common Questions
Is the Fasco D236 compatible with variable speed controllers?
This shaded pole motor is designed for single-speed operation at 115V. While some triac-based controllers may vary the speed, it is optimized for consistent 1550 RPM performance.
Which way does this motor rotate?
The D236 is rated for Counter-Clockwise rotation when viewing the lead end (CCWLE). Always verify your existing blower wheel rotation before installation.
Can this motor be mounted in any orientation?
Yes, the sleeve bearing system and 4-bolt belly band or stud mounting options allow for horizontal or vertical-up/down installations in air-over applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
