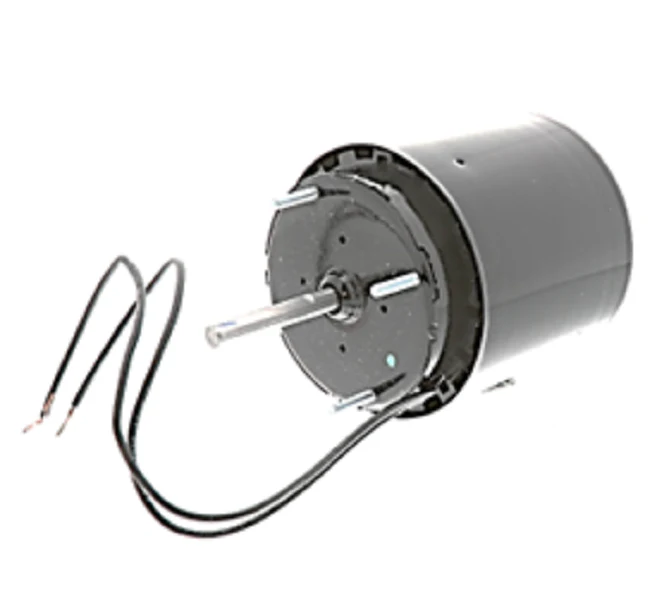

Fasco D227 Motor
The Fasco D227 is a heavy-duty, 3.3-inch diameter shaded pole motor engineered for high-static pressure applications in HVACR fan and blower systems. This 1/20 HP motor operates on a standard 115V single-phase power supply at 1500 RPM, delivering reliable performance in air-over duty environments. Built with a totally enclosed fan-cooled (TEFC) housing, the D227 is protected against dust and moisture, ensuring internal components remain debris-free during continuous operation. The motor features a counterclockwise shaft end (CCWSE) rotation and a 5/16-inch diameter flat shaft that measures 2.30 inches in length, making it a versatile drop-in replacement for various OEM blowers. For added safety and equipment longevity, it includes internal thermal protection to prevent overheating during high-demand cycles. Designed with high-grade ball bearings and Class B insulation, this motor is a preferred choice for contractors seeking a general-purpose blower motor that handles 40°C ambient temperatures with ease.
Key Benefits- TEFC Enclosure: The totally enclosed fan-cooled design provides superior protection against environmental contaminants compared to open-vented alternatives.
- Precision Ball Bearings: Equipped with dual ball bearings for reduced friction, vertical or horizontal mounting flexibility, and extended service life in demanding HVAC applications.
- Universal Mounting: Utilizes extended studs on the shaft end for secure, streamlined installation in standard 3.3-inch frame brackets.
- Thermal Overload Protection: Features an integrated thermally protected system that automatically resets, shielding the windings from electrical or mechanical stress.
What are the primary applications for the Fasco D227?
This motor is specifically designed for fan and blower motor assemblies, frequently used in refrigeration units, exhaust fans, and small air handlers requiring a 1500 RPM shaded pole drive.
Can the rotation direction be reversed on this model?
No, the Fasco D227 is a dedicated counterclockwise (CCWSE) rotation motor. Always verify your specific blower wheel’s rotation requirements before installation.
Is this motor suitable for outdoor condenser use?
While it is totally enclosed, this unit is rated for air-over duty (standard 40°C ambient). It is primarily intended for indoor or protected HVACR compartments where airflow is present over the motor body.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $210.99
-65%$210.99
$73.85Fasco D227 Motor
The Fasco D227 is a heavy-duty, 3.3-inch diameter shaded pole motor engineered for high-static pressure applications in HVACR fan and blower systems. This 1/20 HP motor operates on a standard 115V single-phase power supply at 1500 RPM, delivering reliable performance in air-over duty environments. Built with a totally enclosed fan-cooled (TEFC) housing, the D227 is protected against dust and moisture, ensuring internal components remain debris-free during continuous operation. The motor features a counterclockwise shaft end (CCWSE) rotation and a 5/16-inch diameter flat shaft that measures 2.30 inches in length, making it a versatile drop-in replacement for various OEM blowers. For added safety and equipment longevity, it includes internal thermal protection to prevent overheating during high-demand cycles. Designed with high-grade ball bearings and Class B insulation, this motor is a preferred choice for contractors seeking a general-purpose blower motor that handles 40°C ambient temperatures with ease.
Key Benefits- TEFC Enclosure: The totally enclosed fan-cooled design provides superior protection against environmental contaminants compared to open-vented alternatives.
- Precision Ball Bearings: Equipped with dual ball bearings for reduced friction, vertical or horizontal mounting flexibility, and extended service life in demanding HVAC applications.
- Universal Mounting: Utilizes extended studs on the shaft end for secure, streamlined installation in standard 3.3-inch frame brackets.
- Thermal Overload Protection: Features an integrated thermally protected system that automatically resets, shielding the windings from electrical or mechanical stress.
What are the primary applications for the Fasco D227?
This motor is specifically designed for fan and blower motor assemblies, frequently used in refrigeration units, exhaust fans, and small air handlers requiring a 1500 RPM shaded pole drive.
Can the rotation direction be reversed on this model?
No, the Fasco D227 is a dedicated counterclockwise (CCWSE) rotation motor. Always verify your specific blower wheel’s rotation requirements before installation.
Is this motor suitable for outdoor condenser use?
While it is totally enclosed, this unit is rated for air-over duty (standard 40°C ambient). It is primarily intended for indoor or protected HVACR compartments where airflow is present over the motor body.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
