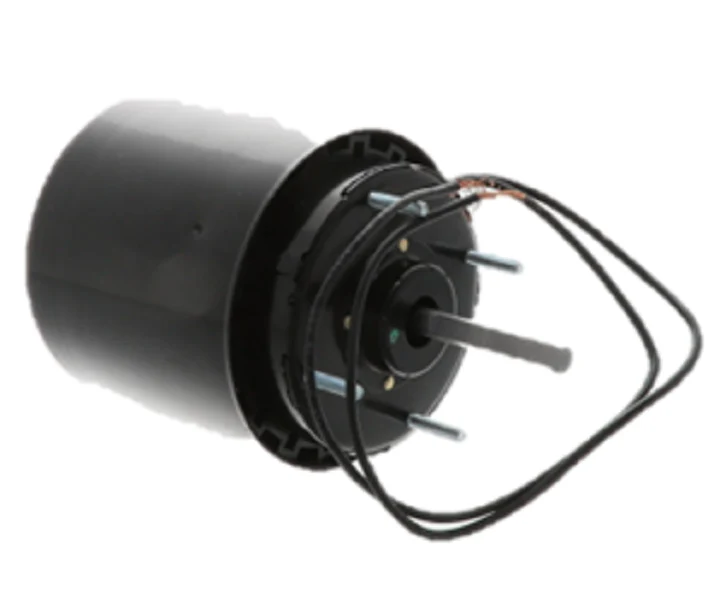

Fasco D226 Motor
The Fasco D226 is a 3.3-inch diameter, shaded pole motor engineered for high-performance fan and blower applications. Delivering 1/20 HP at a rated speed of 1500 RPM, this single-speed motor operates on a standard 115V, 60Hz single-phase power supply. Designed for durability in demanding HVACR environments, it features a totally enclosed fan-cooled (TEFC) enclosure and ball bearings to ensure smooth operation and resistance to dust and debris. The 5/16" x 2.30" shaft includes a flat for secure blower wheel attachment, while the extended studs on the shaft end provide versatile mounting options for various OEM configurations. This motor is thermally protected with Class B insulation, rated for a 40°C ambient temperature. Whether you are performing a replacement motor swap or a new installation, the D226 provides the mechanical reliability and exact CW rotation required for critical airflow systems.
Key Benefits- Direct OEM Replacement: Matches specifications for a wide range of fan and blower assemblies, ensuring a precise fit.
- Durable TEFC Construction: The totally enclosed design protects internal components from airborne contaminants.
- High-Efficiency Bearings: Equipped with ball bearings for reduced friction and extended component life.
- Enhanced Safety: Built-in thermal overload protection prevents overheating during continuous duty operations.
- Simplified Installation: Standard 3.3" frame with extended studs allows for fast integration into existing brackets.
What is the rotation direction for the Fasco D226?
This motor is designed for Clockwise (CW) rotation when viewing the shaft end.
Can this motor be used in air-over applications?
Yes, the TEFC and Air-Over (AO) rating makes it suitable for draft inducers and blower units where airflow is present.
Does this motor include a capacitor?
No, the D226 is a shaded pole motor and does not require a start or run capacitor for operation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
