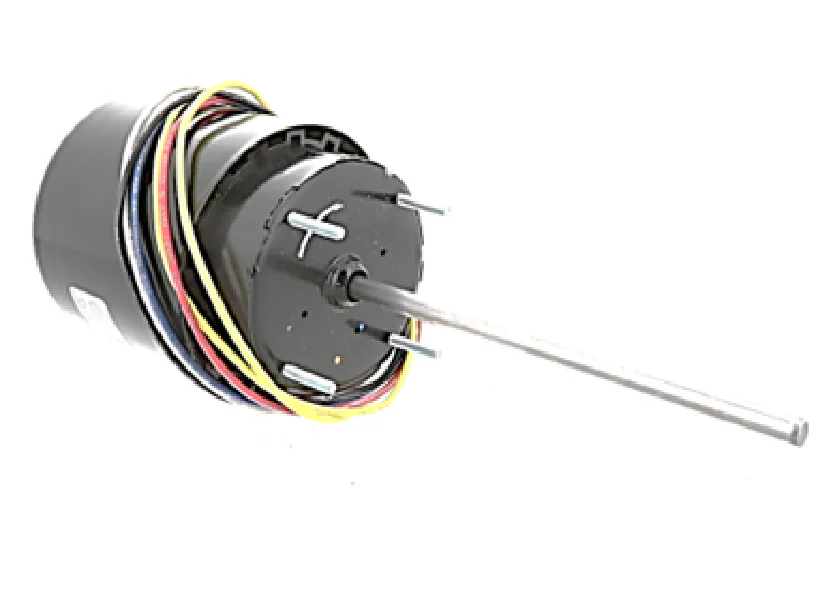

Fasco D220 Motor
Equip your service truck with the Fasco D220, a versatile 3.3-inch diameter motor designed for high-demand HVACR fan and blower applications. This shaded pole motor delivers a consistent 3000 RPM at 1/20 HP, featuring a dual-voltage configuration (115/230V) to handle various field requirements with a single unit. Engineered as a TEFC (Totally Enclosed Fan Cooled) motor, it provides superior protection against dust and moisture, making it a reliable swap for 3.3-inch frame replacements such as the Dayton 38N523. The 5/16" x 6-1/2" shaft with a flat and extended studs on the shaft end ensure a straightforward mechanical fit for direct-drive centrifugal blowers. Built with ball bearings and Class B insulation for a 40°C ambient rating, this 2-pole motor is a standard for technicians needing a durable 1/20 HP blower motor that maintains performance across single-speed configurations.
Key Benefits- Dual-Voltage Versatility: Operates on both 115V and 230V systems, reducing the need to carry multiple motor SKUs.
- TEFC Protection: The totally enclosed housing prevents environmental contaminants from reaching the internal windings.
- Durable Bearing System: Equipped with ball bearings for extended mechanical life in high-speed 3000 RPM applications.
- Flexible Mounting: Features extended studs at the shaft end for easy integration into existing brackets.
- Thermal Protection: Integrated auto-reset thermal overload prevents internal damage during high-heat operation.
Can the Fasco D220 replace a motor with a different shaft length?
The D220 features a 6.5-inch shaft. While it can be cut to fit shorter requirements, verify the 5/16" diameter and 3.3" frame size are identical to your original part for proper alignment.
Does this motor require a capacitor for installation?
No, this is a shaded pole motor design, meaning it does not require a start or run capacitor to operate.
What is the direction of rotation for the D220?
This motor is rated for CWSE (Clockwise Shaft End) rotation. Always check your blower wheel orientation before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $224.75
-65%$224.75
$78.66Fasco D220 Motor
Equip your service truck with the Fasco D220, a versatile 3.3-inch diameter motor designed for high-demand HVACR fan and blower applications. This shaded pole motor delivers a consistent 3000 RPM at 1/20 HP, featuring a dual-voltage configuration (115/230V) to handle various field requirements with a single unit. Engineered as a TEFC (Totally Enclosed Fan Cooled) motor, it provides superior protection against dust and moisture, making it a reliable swap for 3.3-inch frame replacements such as the Dayton 38N523. The 5/16" x 6-1/2" shaft with a flat and extended studs on the shaft end ensure a straightforward mechanical fit for direct-drive centrifugal blowers. Built with ball bearings and Class B insulation for a 40°C ambient rating, this 2-pole motor is a standard for technicians needing a durable 1/20 HP blower motor that maintains performance across single-speed configurations.
Key Benefits- Dual-Voltage Versatility: Operates on both 115V and 230V systems, reducing the need to carry multiple motor SKUs.
- TEFC Protection: The totally enclosed housing prevents environmental contaminants from reaching the internal windings.
- Durable Bearing System: Equipped with ball bearings for extended mechanical life in high-speed 3000 RPM applications.
- Flexible Mounting: Features extended studs at the shaft end for easy integration into existing brackets.
- Thermal Protection: Integrated auto-reset thermal overload prevents internal damage during high-heat operation.
Can the Fasco D220 replace a motor with a different shaft length?
The D220 features a 6.5-inch shaft. While it can be cut to fit shorter requirements, verify the 5/16" diameter and 3.3" frame size are identical to your original part for proper alignment.
Does this motor require a capacitor for installation?
No, this is a shaded pole motor design, meaning it does not require a start or run capacitor to operate.
What is the direction of rotation for the D220?
This motor is rated for CWSE (Clockwise Shaft End) rotation. Always check your blower wheel orientation before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
