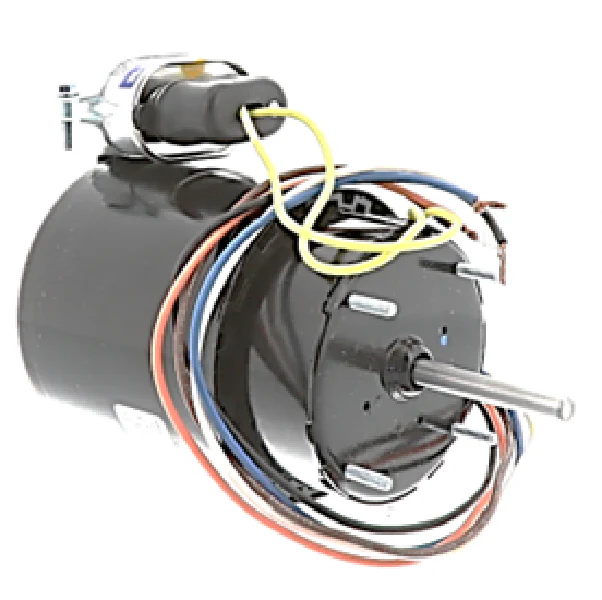

Fasco D219 Motor
The Fasco D219 Motor is a high-performance, 3.3-inch diameter motor engineered for demanding HVACR applications, including general-purpose fan and blower motor duty. Built with a 1/8 HP output and operating at 3000 RPM, this 115V single-phase motor provides the reliable torque and speed required for consistent airflow in residential and light commercial systems. As a Permanent Split Capacitor (PSC) motor, it ensures high electrical efficiency and a smooth start-up, which is critical for extending the life of your ventilation equipment. The unit features reversible rotation (CW/CCW) and an extended stud mount, making it a versatile choice for field replacements where standard mounting configurations vary. This thermally protected motor is housed in a Totally Enclosed Air Over (TEAO) enclosure, safeguarding internal components from dust and moisture while utilizing the moving air for cooling. For technicians, the 5/16" x 2-1/4" flat shaft and included 4 Mfd 370V capacitor streamline the installation process, ensuring you have the necessary components to get a system back online immediately.
Key Benefits- Universal Field Versatility: The reversible rotation capability and 4-stud mount design allow for seamless replacement across a wide range of OEM equipment.
- Optimized Thermal Management: Features Class B insulation and an automatic overload protector to prevent winding failure during high-static operation.
- Enhanced Durability: Equipped with precision ball bearings and a rugged steel frame to withstand continuous duty cycles in 3.3 frame motors.
- Ready for Install: Includes a matched 4 Mfd run capacitor and 12-inch leads to reduce time spent on the job site.
Is the Fasco D219 a suitable replacement for Dayton or A.O. Smith motors?
Yes, the Fasco D219 is a common cross-reference for models such as the Dayton 38N525, 3M292, and A.O. Smith 982. Always verify the 3.3" frame diameter and 1/8 HP rating before installation.
Can I change the direction of rotation on-site?
The D219 Fasco motor is designed for reversible rotation. Technicians can easily configure the lead wires to provide either clockwise or counter-clockwise rotation to match the blower wheel requirements.
Does this motor require a specific capacitor?
This 115V HVAC motor requires a 4 Mfd 370V capacitor for proper operation. To ensure peak performance and current draw within the 1.8 Amp rating, use the capacitor included with the assembly.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $310.12
-65%$310.12
$108.54Fasco D219 Motor
