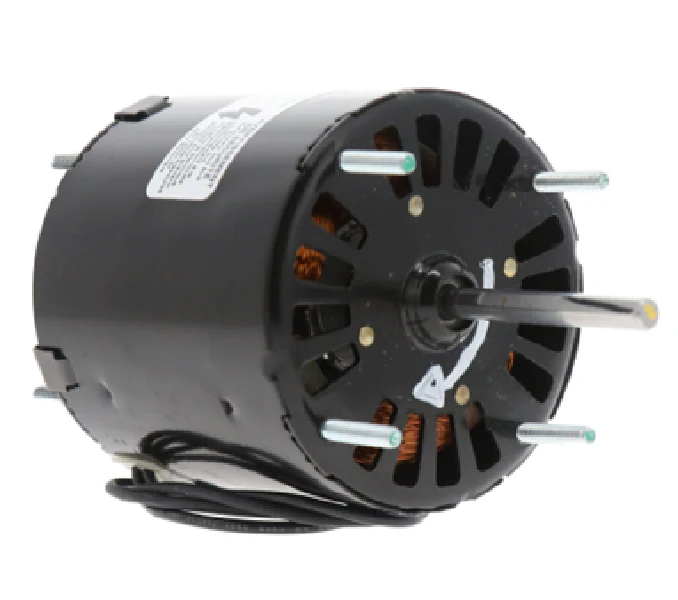

Fasco D216 Motor
The Fasco D216 is a heavy-duty, 3.3-inch diameter motor designed for high-performance HVAC/R applications including direct-drive fans and blowers. Rated at 1/25 HP and operating at a consistent 3000 RPM, this single-speed unit handles 230V single-phase power at 60Hz. It features a robust shaded pole electrical design and an Open Air Over (OAO) enclosure, ensuring efficient heat dissipation during continuous duty. The motor is equipped with sleeve bearings for quiet operation and is thermally protected to prevent winding failure under load. Installation is streamlined by extended studs on both ends and a 1/4-inch diameter shaft with a flat, measuring 2.30 inches in length. This Fasco replacement motor is a reliable choice for technicians requiring a 3.3-inch frame motor with clockwise rotation (CWSE) for residential or commercial ventilation systems.
Key Benefits
- Efficient Cooling: The Open Air Over (OAO) design utilizes the system's airflow to maintain optimal operating temperatures.
- Reliable Protection: Integrated thermal overload protection automatically interrupts power to prevent motor burnout.
- Quiet Performance: Internally lubricated sleeve bearings provide smooth, low-noise operation in air-moving applications.
- Versatile Mounting: Features extended studs and a standard 3.3-inch frame for direct compatibility with many OEM blower assemblies.
- High-Speed Output: Delivers 3000 RPM for high-velocity air movement required in specific exhaust and circulation setups.
Common Questions
What is the direction of rotation for the Fasco D216?
The D216 is a clockwise rotation motor when viewed from the shaft end (CWSE).
Can this motor be used in a 208V application?
Yes, this 230V HVAC motor typically operates within a standard voltage tolerance that allows for 208V-230V single-phase installations.
Is a capacitor required for the Fasco D216?
No, this is a shaded pole motor, which does not require a start or run capacitor for operation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $149.69
-65%$149.69
$52.39Fasco D216 Motor
The Fasco D216 is a heavy-duty, 3.3-inch diameter motor designed for high-performance HVAC/R applications including direct-drive fans and blowers. Rated at 1/25 HP and operating at a consistent 3000 RPM, this single-speed unit handles 230V single-phase power at 60Hz. It features a robust shaded pole electrical design and an Open Air Over (OAO) enclosure, ensuring efficient heat dissipation during continuous duty. The motor is equipped with sleeve bearings for quiet operation and is thermally protected to prevent winding failure under load. Installation is streamlined by extended studs on both ends and a 1/4-inch diameter shaft with a flat, measuring 2.30 inches in length. This Fasco replacement motor is a reliable choice for technicians requiring a 3.3-inch frame motor with clockwise rotation (CWSE) for residential or commercial ventilation systems.
Key Benefits
- Efficient Cooling: The Open Air Over (OAO) design utilizes the system's airflow to maintain optimal operating temperatures.
- Reliable Protection: Integrated thermal overload protection automatically interrupts power to prevent motor burnout.
- Quiet Performance: Internally lubricated sleeve bearings provide smooth, low-noise operation in air-moving applications.
- Versatile Mounting: Features extended studs and a standard 3.3-inch frame for direct compatibility with many OEM blower assemblies.
- High-Speed Output: Delivers 3000 RPM for high-velocity air movement required in specific exhaust and circulation setups.
Common Questions
What is the direction of rotation for the Fasco D216?
The D216 is a clockwise rotation motor when viewed from the shaft end (CWSE).
Can this motor be used in a 208V application?
Yes, this 230V HVAC motor typically operates within a standard voltage tolerance that allows for 208V-230V single-phase installations.
Is a capacitor required for the Fasco D216?
No, this is a shaded pole motor, which does not require a start or run capacitor for operation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
