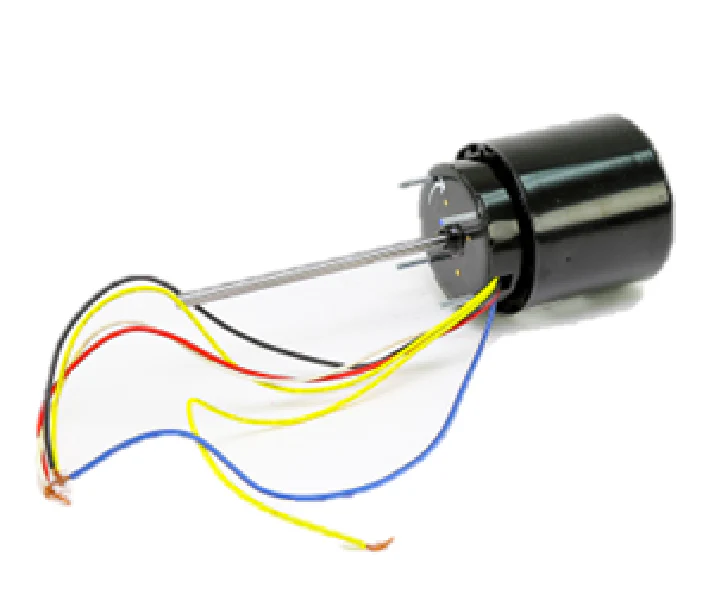

Fasco D214 Motor
When you're spec-ing a high-speed replacement for ice machine pumps or general-purpose fan applications, the Fasco D214 Motor provides the exact performance profile required for high-head draft and circulation. This 1/20 HP 115/230V 3000 RPM motor is a shaded pole electric motor designed with a dual voltage capability, allowing for seamless integration into various field service scenarios without carrying extra inventory. The 3.3-inch diameter frame features a totally enclosed fan cooled (TEFC) housing, making it resilient in environments where moisture or contaminants are present. With a CW shaft end rotation and a 5/16" x 6-1/2" shaft, this thermally protected motor eliminates the guesswork for field technicians swap-outs. Its 40°C ambient rating and Class B insulation ensure stable operation under continuous duty. For contractors looking for a Fasco D214 cross reference, this unit offers the refined balance and sleeve bearing reliability expected for high-RPM service.
Key Benefits for the Field- Dual Voltage Versatility: Direct 115V or 230V wiring compatibility simplifies truck stock management.
- Rugged TEFC Construction: The totally enclosed design protects internal windings from airborne debris and moisture.
- Precise High-Speed Delivery: Constant 3000 RPM output is optimized for high-demand fan and pump applications.
- Simplified Mounting: Features extended studs on the shaft end for rapid installation in existing brackets.
- Safety Integrated: Built-in thermal protection prevents winding failure during temporary overloads or blocked rotors.
Is the Fasco D214 suitable for ice machine pump replacement?
Yes, this motor is a standard specification for various commercial ice machine pumps due to its high RPM and 1/20 HP output.
Can I use this motor in an outdoor condenser environment?
While it is totally enclosed, it is best suited for indoor fan-coil units or protected pump assemblies where the air-over duty cycle can maintain thermal stability.
How do I change the rotation of the D214?
This specific model is fixed at Clockwise Shaft End (CWSE) rotation. Verify your impeller or blade pitch requirements before installation as the rotation is not reversible.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $212.53
-65%$212.53
$74.39Fasco D214 Motor
When you're spec-ing a high-speed replacement for ice machine pumps or general-purpose fan applications, the Fasco D214 Motor provides the exact performance profile required for high-head draft and circulation. This 1/20 HP 115/230V 3000 RPM motor is a shaded pole electric motor designed with a dual voltage capability, allowing for seamless integration into various field service scenarios without carrying extra inventory. The 3.3-inch diameter frame features a totally enclosed fan cooled (TEFC) housing, making it resilient in environments where moisture or contaminants are present. With a CW shaft end rotation and a 5/16" x 6-1/2" shaft, this thermally protected motor eliminates the guesswork for field technicians swap-outs. Its 40°C ambient rating and Class B insulation ensure stable operation under continuous duty. For contractors looking for a Fasco D214 cross reference, this unit offers the refined balance and sleeve bearing reliability expected for high-RPM service.
Key Benefits for the Field- Dual Voltage Versatility: Direct 115V or 230V wiring compatibility simplifies truck stock management.
- Rugged TEFC Construction: The totally enclosed design protects internal windings from airborne debris and moisture.
- Precise High-Speed Delivery: Constant 3000 RPM output is optimized for high-demand fan and pump applications.
- Simplified Mounting: Features extended studs on the shaft end for rapid installation in existing brackets.
- Safety Integrated: Built-in thermal protection prevents winding failure during temporary overloads or blocked rotors.
Is the Fasco D214 suitable for ice machine pump replacement?
Yes, this motor is a standard specification for various commercial ice machine pumps due to its high RPM and 1/20 HP output.
Can I use this motor in an outdoor condenser environment?
While it is totally enclosed, it is best suited for indoor fan-coil units or protected pump assemblies where the air-over duty cycle can maintain thermal stability.
How do I change the rotation of the D214?
This specific model is fixed at Clockwise Shaft End (CWSE) rotation. Verify your impeller or blade pitch requirements before installation as the rotation is not reversible.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
