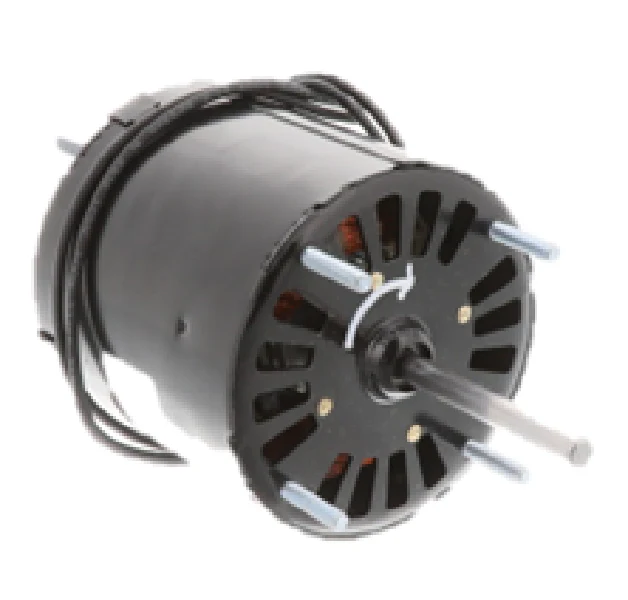

Fasco D210 Motor
The Fasco D210 Motor is a high-performance 1/25 HP replacement motor engineered for demanding HVAC and industrial ventilation applications. Operating at a fixed speed of 3000 RPM, this 115V single-phase motor utilizes a shaded pole electrical design to deliver consistent airflow in fan and blower assemblies. With a compact 3.3-inch frame diameter and a durable rolled steel shell, it is built to fit tight clearances while maintaining the thermal stability required for continuous operation. The open air over (OAO) enclosure ensures maximum heat dissipation, making it a reliable choice for Fasco D210 cross reference needs in residential and commercial equipment.
Designed for easy field installation, this motor features extended studs on both the shaft and lead ends, along with a 1/4-inch diameter shaft with a flat. The internal sleeve bearings provide quiet operation, and the unit is thermally protected to prevent winding failure under locked rotor or overload conditions. Whether you are replacing a 7021-6741 or updating a general-purpose blower, the D210 provides the exact torque and rotational speed needed to restore system performance to factory specifications.
Key Benefits
- Universal Mounting: Features extended mounting studs on both ends for versatile installation in diverse blower housings.
- Thermal Protection: Integrated auto-reset thermal overload protector prevents motor burnout during high-load scenarios.
- Industrial Build: Rolled steel construction and sleeve bearings ensure long-term durability in moderate-duty cycles.
- High-Speed Efficiency: Rated at 3000 RPM and 1.3 Amps, providing the necessary static pressure for effective ventilation.
Common Questions
What is the rotation direction of the Fasco D210?
This motor is CWSE (Clockwise Shaft End) rotation. Always verify the rotation of your existing blower wheel before installation to ensure proper airflow.
Can the shaft be modified if it is too long?
Yes, the 1/4" x 2-1/4" shaft is made of standard carbon steel and can be carefully shortened with a hacksaw or cut-off tool if your specific application requires a shorter profile.
Is this a direct replacement for my OEM furnace inducer motor?
The D210 is a general-purpose 3.3-inch diameter motor. While it crosses to many OEM parts like the 7021-4927 and 7121-7203, you must confirm the HP, RPM, and mounting bolt circle (2.85") match your original motor's label.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
