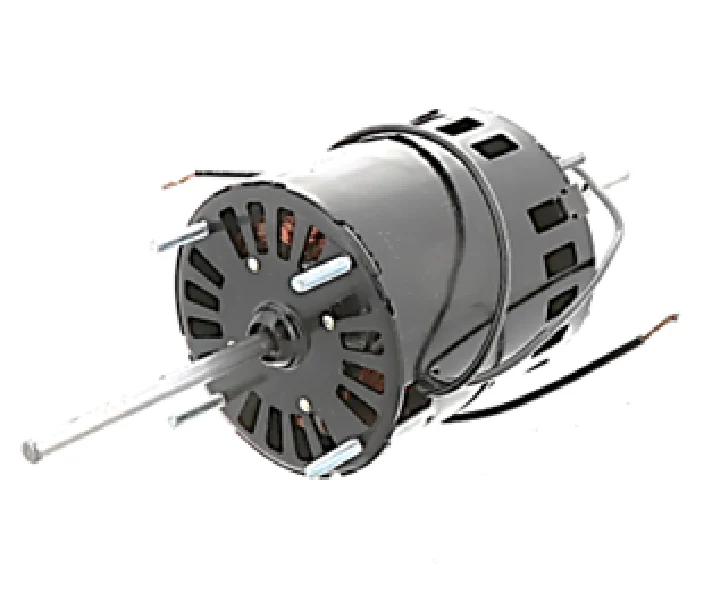

Fasco D209 Motor
The Fasco D209 Motor is a high-performance, shaded pole replacement designed for demanding HVAC applications requiring a 3.3-inch diameter motor. Engineered for fan and blower motor duty, this 1/30 HP unit operates at a steady 3000 RPM on standard 115V single-phase power. As a seasoned technician knows, the double shaft configuration—measuring 3-1/4" on both ends with a 1/4" diameter—provides the critical versatility needed for dual-wheel blower setups often found in room air conditioners and specialized heating units.
This Fasco D209 features an Open Air Over (OAO) enclosure, utilizing the system's airflow to maintain optimal operating temperatures during continuous duty. The motor is built with sleeve bearings for quiet operation and includes thermal protection to prevent winding failure during overcurrent events. With a 1.1-amp draw and extended stud mounting (2.85" bolt circle), it serves as a direct drop-in for numerous OEM configurations, ensuring you spend less time on-site modifying brackets and more time getting the system back online.
Key Benefits- Direct OEM Compatibility: Replaces common 3.3" frame models including Dayton 38N519, making it a staple for service vans.
- Versatile Double Shaft: Dual 3-1/4" shafts with flats allow for flexible blower wheel positioning and can be trimmed to fit tighter housings.
- Reliable Self-Cooling: The OAO design ensures efficient heat dissipation when placed directly in the air stream.
- Simplified Installation: Features a 4-stud mount on both ends and 12-inch leads for straightforward wiring across various cabinet styles.
Can the shafts be shortened if they are too long for my housing?
Yes, the 1/4" diameter shafts are designed so that any excess length can be safely removed with a hacksaw or reciprocating saw to meet specific clearance requirements.
Is this motor reversible?
This specific model is a shaded pole motor typically configured for CWSE (Clockwise Shaft End) rotation; however, always verify the rotation of the existing blower wheel before installation to ensure proper airflow.
What are the primary applications for the D209?
It is most commonly used in double-wheel blowers, exhaust fans, and small air conditioning units where a compact 3.3" frame and high RPM are required.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
