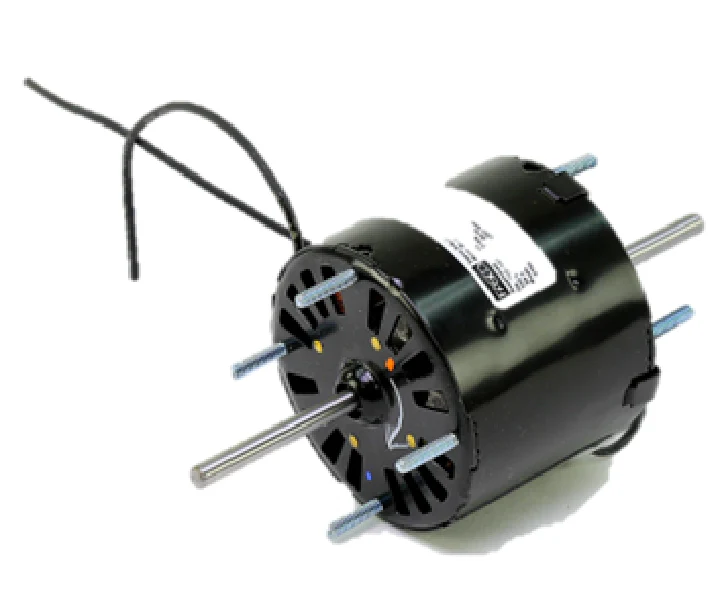

Fasco D207 Motor
The Fasco D207 Motor is a high-performance, 3.3-inch diameter shaded pole motor designed for continuous duty in demanding HVAC and refrigeration environments. Operating at 230V and delivering 1/30 HP at a rated speed of 3000 RPM, this single-speed blower motor provides reliable air movement for double blowers, room air conditioners, and electric heaters. Built by Regal Rexnord, this direct OEM replacement motor features a robust steel frame and OAO (Open Air Over) enclosure, ensuring efficient heat dissipation during operation. The double shaft configuration, measuring 1/4 inch in diameter with a 2.25-inch extension on each side, offers versatile mounting possibilities, further supported by extended studs on both ends with a 2.85-inch bolt circle. Internal automatic thermal protection and durable sleeve bearings minimize maintenance requirements while maintaining consistent performance in ambient temperatures up to 40°C.
Key Benefits- Broad Compatibility: Serves as a direct replacement for many OEM configurations, including cross-references A0207, JA1N122, and 979.
- Dual Shaft Versatility: The 1/4-inch double shaft design allows for installation in specialized blower assemblies requiring multiple fan wheels.
- Reduced Downtime: Engineered for reliability with Class B insulation and thermal overload protection to prevent motor burnout under varying loads.
- Easy Installation: Features 12-inch leads and 4-stud mounting at each end, allowing for quick integration into existing cabinetry.
What is the rotation of the Fasco D207 motor?
The motor is designed for CWSE (Clockwise Shaft End) rotation, which is typically viewed from the shaft end opposite the lead end.
Can the mounting studs or shafts be modified?
Yes, in field applications where the full length is not required, the extended studs can be trimmed, and the shafts may be shortened to fit specific housing constraints.
Does this motor require a capacitor?
No, the Fasco D207 is a shaded pole motor and does not require a start or run capacitor for operation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Fasco D207 Motor
The Fasco D207 Motor is a high-performance, 3.3-inch diameter shaded pole motor designed for continuous duty in demanding HVAC and refrigeration environments. Operating at 230V and delivering 1/30 HP at a rated speed of 3000 RPM, this single-speed blower motor provides reliable air movement for double blowers, room air conditioners, and electric heaters. Built by Regal Rexnord, this direct OEM replacement motor features a robust steel frame and OAO (Open Air Over) enclosure, ensuring efficient heat dissipation during operation. The double shaft configuration, measuring 1/4 inch in diameter with a 2.25-inch extension on each side, offers versatile mounting possibilities, further supported by extended studs on both ends with a 2.85-inch bolt circle. Internal automatic thermal protection and durable sleeve bearings minimize maintenance requirements while maintaining consistent performance in ambient temperatures up to 40°C.
Key Benefits- Broad Compatibility: Serves as a direct replacement for many OEM configurations, including cross-references A0207, JA1N122, and 979.
- Dual Shaft Versatility: The 1/4-inch double shaft design allows for installation in specialized blower assemblies requiring multiple fan wheels.
- Reduced Downtime: Engineered for reliability with Class B insulation and thermal overload protection to prevent motor burnout under varying loads.
- Easy Installation: Features 12-inch leads and 4-stud mounting at each end, allowing for quick integration into existing cabinetry.
What is the rotation of the Fasco D207 motor?
The motor is designed for CWSE (Clockwise Shaft End) rotation, which is typically viewed from the shaft end opposite the lead end.
Can the mounting studs or shafts be modified?
Yes, in field applications where the full length is not required, the extended studs can be trimmed, and the shafts may be shortened to fit specific housing constraints.
Does this motor require a capacitor?
No, the Fasco D207 is a shaded pole motor and does not require a start or run capacitor for operation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
