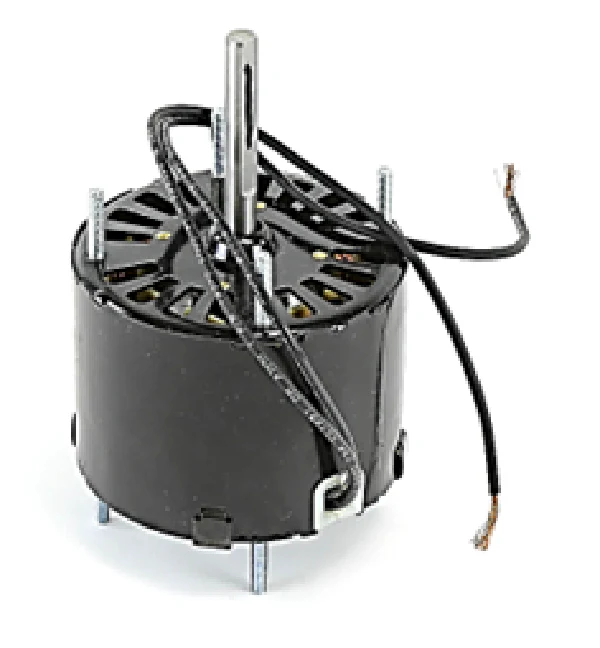

Fasco D126 Motor
When you need a reliable Fasco D126 replacement motor for high-static pressure applications, this 1/40 HP unit delivers consistent performance as a shaded pole motor. Operating at 115 volts and 1500 RPM, it is built with a standard 3.3-inch diameter and a 5/16-inch by 2.30-inch shaft featuring a flat for secure blower wheel attachment. Designed with extended studs on both ends, it provides flexible mounting options for bath fans, kitchen exhaust hoods, and humidifiers. This single-speed blower motor features an Open Air Over (OAO) enclosure and sleeve bearings to ensure thermal protection and efficient heat dissipation during continuous operation.
- Universal Mounting: Includes 4 mounting studs on each end with a 2.85-inch bolt circle for easy installation.
- Industry Compatibility: Direct replacement for several OEM models, including 7163-3736 and Magnetek U26.
- Durable Construction: Features Class B insulation and is thermally protected to handle ambient temperatures up to 40°C.
- Optimized Airflow: The 1500 RPM speed is specifically tuned for ventilation systems requiring steady 4-pole motor performance.
Common Questions
Is the rotation reversible on this motor?
No, this specific model is designed for clockwise rotation (CW) when viewed from the shaft end. Always verify your existing blower rotation before installation.
Can I use this for a range hood replacement?
Yes, the Fasco 1/40 HP motor is a common choice for exhaust hoods and humidifiers that utilize a 3.3-inch frame. Check your shaft dimensions to ensure a match.
How do I mount this if my bracket is different?
The extended studs allow for stud mounting, but it is also compatible with a 3.3-inch diameter belly band mount if your system uses a wrap-around bracket.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
