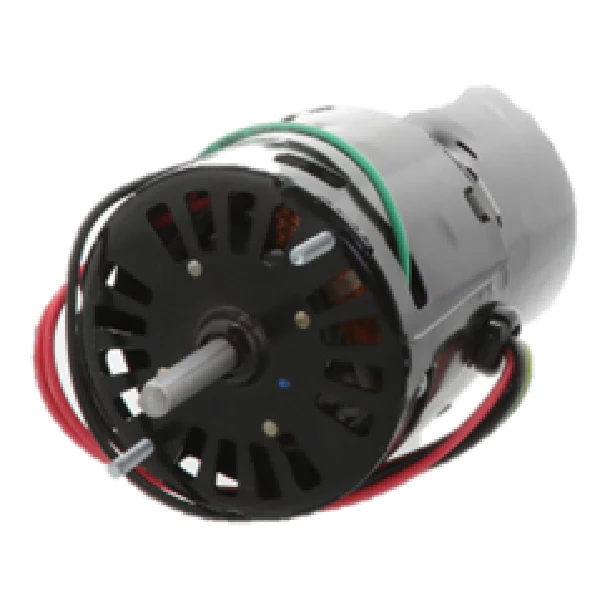

Fasco D1192 Motor
The Fasco D1192 is a high-performance 1/40 HP draft inducer motor designed for reliable flue exhaust and draft booster applications. This 3.3-inch diameter shaded pole motor operates at 3000 RPM on a standard 115V single-phase power supply, pulling 0.7 amps. Engineered with an open air over (OAO) enclosure and sleeve bearings, it ensures optimal heat dissipation and quiet operation in demanding HVAC environments. The motor features CCW rotation (shaft end) and a 5/16" x 1-1/2" shaft with a flat for secure blower wheel attachment. For professional installation, the unit includes extended studs on the shaft end (8-32 thread) and a standard bolt circle for drop-in compatibility with many OEM furnace and boiler assemblies. It is thermally protected to prevent winding failure under locked-rotor or over-temperature conditions, maintaining system safety without unnecessary downtime.
Key Benefits for Contractors- Direct Replacement Compatibility: Designed with a 3.3" frame and extended studs to match common Fasco draft booster configurations.
- High-Speed Performance: Delivers a consistent 3000 RPM for precise venting and combustion air delivery.
- All-Angle Mounting: The sleeve bearing system and stud design allow for versatile mounting orientation in tight mechanical spaces.
- Safety Integrated: Internal thermal protection provides an essential layer of defense against motor burnout.
Is the Fasco D1192 a suitable replacement for my draft inducer?
Yes, if your existing motor matches the 1/40 HP, 115V, 3000 RPM specifications and utilizes a 3.3" diameter shaded pole frame with CCW rotation.
Does this motor include the fan blade or blower wheel?
No, this is the replacement motor only. You should move your existing blower wheel to the 5/16" flat shaft or purchase a compatible wheel separately.
What is the rotation direction of the D1192?
The motor is rated for Counterclockwise (CCW) rotation when viewing the shaft end.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Fasco D1192 Motor
The Fasco D1192 is a high-performance 1/40 HP draft inducer motor designed for reliable flue exhaust and draft booster applications. This 3.3-inch diameter shaded pole motor operates at 3000 RPM on a standard 115V single-phase power supply, pulling 0.7 amps. Engineered with an open air over (OAO) enclosure and sleeve bearings, it ensures optimal heat dissipation and quiet operation in demanding HVAC environments. The motor features CCW rotation (shaft end) and a 5/16" x 1-1/2" shaft with a flat for secure blower wheel attachment. For professional installation, the unit includes extended studs on the shaft end (8-32 thread) and a standard bolt circle for drop-in compatibility with many OEM furnace and boiler assemblies. It is thermally protected to prevent winding failure under locked-rotor or over-temperature conditions, maintaining system safety without unnecessary downtime.
Key Benefits for Contractors- Direct Replacement Compatibility: Designed with a 3.3" frame and extended studs to match common Fasco draft booster configurations.
- High-Speed Performance: Delivers a consistent 3000 RPM for precise venting and combustion air delivery.
- All-Angle Mounting: The sleeve bearing system and stud design allow for versatile mounting orientation in tight mechanical spaces.
- Safety Integrated: Internal thermal protection provides an essential layer of defense against motor burnout.
Is the Fasco D1192 a suitable replacement for my draft inducer?
Yes, if your existing motor matches the 1/40 HP, 115V, 3000 RPM specifications and utilizes a 3.3" diameter shaded pole frame with CCW rotation.
Does this motor include the fan blade or blower wheel?
No, this is the replacement motor only. You should move your existing blower wheel to the 5/16" flat shaft or purchase a compatible wheel separately.
What is the rotation direction of the D1192?
The motor is rated for Counterclockwise (CCW) rotation when viewing the shaft end.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
