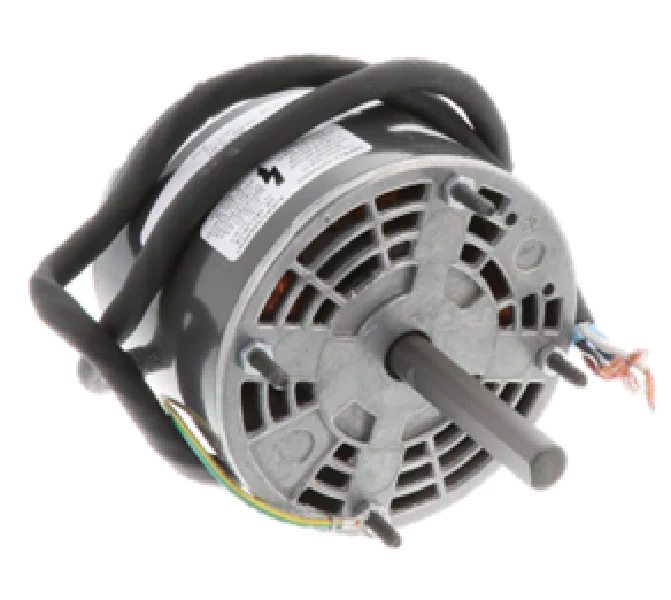

Fasco D119 Motor
The Fasco D119 Motor is a high-performance, 3-speed replacement specifically engineered for general-purpose fan and blower applications. Operating at 120V (115V nominal), this versatile motor features a multi-horsepower design capable of delivering 1/11, 1/25, and 1/70 HP. Built with a 4.4-inch diameter shaded pole frame, it provides 1500 RPM while maintaining high efficiency through its reliable ball bearing system. The 1/2" x 2-5/8" shaft and CCW rotation (shaft end) ensure seamless integration into existing HVACR setups, particularly in attic exhaust fans and roof ventilators. Featuring thermal protection and an open air-over (OAO) enclosure, this motor is built for continuous duty in demanding contractor environments. Whether you are replacing a Dayton 4M222 or a Greenheck 300006, the Fasco D119 offers the standard 2.75" square mounting studs and 3.89" bolt circle required for a drop-in Fasco motor replacement, ensuring minimal downtime on the job site.
Key Benefits- Multi-Tap Versatility: The 3-speed configuration allows for precise air movement control across 1/11, 1/25, and 1/70 HP ratings.
- High-Durability Bearings: Equipped with ball bearings to handle higher thrust loads and provide a longer service life compared to sleeve bearing alternatives.
- Contractor Compatibility: Direct replacement for Dayton 4M222, Acme DB2E011, and several Greenheck ventilator models.
- Safety Integrated: Internal thermally protected motor design prevents overheating during continuous operation in high-ambient environments.
What is the rotation for the Fasco D119?
This motor is configured for Counter-Clockwise (CCW) rotation specifically from the shaft end.
Can I use this to replace a 115V motor?
Yes, the Fasco D119 motor specifications list it as a 115V/120V unit, making it the standard choice for residential and commercial 60Hz power systems.
What are the mounting dimensions?
The motor uses standard extended studs with a 2.75" x 2.75" square pattern and a 3.89" bolt circle for flexible installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
