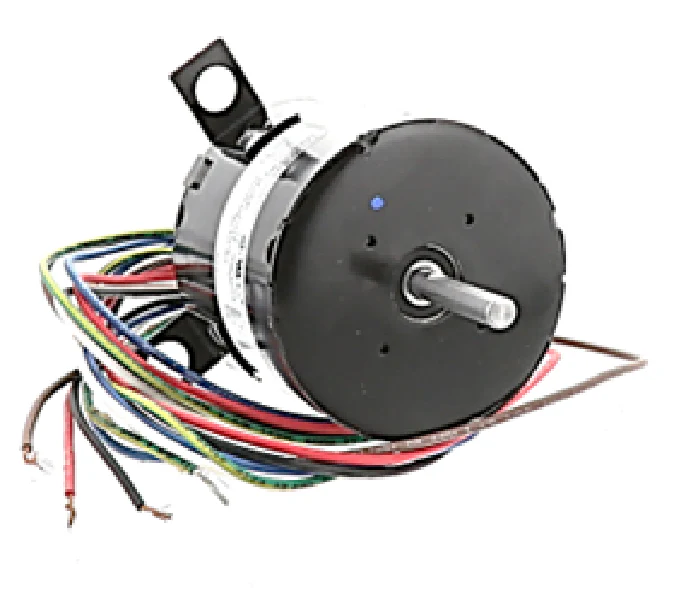

Fasco D1189 Motor
The Fasco D1189 Motor is a high-performance 1/20 HP OEM direct replacement motor engineered for demanding commercial refrigeration and HVAC applications, most notably for Krack Refrigeration systems. This 3.3-inch diameter shaded pole motor operates on a versatile 115/208-230V dual voltage configuration, delivering a reliable 1550 RPM for consistent airflow. Designed with a Totally Enclosed Air Over (TEAO) enclosure, it maintains optimal internal temperatures by utilizing the system's own air stream for cooling. The ball bearing design ensures reduced friction and extended service life compared to standard sleeve bearings, while the thermally protected circuitry prevents winding failure during overcurrent events. With a 5/16" x 1.65" shaft and a three-lug mount, this motor provides a precise physical and electrical match for a broad range of condenser fan motor and evaporator motor replacements. For technicians, the CW shaft-end rotation and 40-inch leads simplify terminal connections in tight cabinets.
Key Benefits- Dual Voltage Versatility: Operates seamlessly on 115V or 208-230V single-phase power, reducing the need for multiple stocked parts.
- TEAO Protection: The Totally Enclosed Air Over housing prevents dust and moisture ingress, critical for refrigeration environments.
- Durability and Efficiency: Equipped with ball bearings for high-temperature stability and a heavy-duty rolled steel frame.
- Easy Installation: Features a standard lug mount and a 5/16-inch diameter shaft with a flat for secure fan blade attachment.
Is the D1189 a direct replacement for my Krack Refrigeration unit?
Yes, the Fasco D1189 specifically replaces Krack 11528 and 11529 models, as well as several crossover parts from Century, JA2P216N, and JB2P046N.
Can this motor handle fluctuating ambient temperatures?
This HVAC replacement motor is rated for a 40°C (104°F) ambient temperature and includes Class B insulation to handle typical commercial duty cycles.
What is the rotation direction of the D1189?
The motor is configured for Clockwise (CW) rotation when viewed from the shaft end, which is standard for most compatible condenser applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $154.04
-65%$154.04
$53.91Fasco D1189 Motor
The Fasco D1189 Motor is a high-performance 1/20 HP OEM direct replacement motor engineered for demanding commercial refrigeration and HVAC applications, most notably for Krack Refrigeration systems. This 3.3-inch diameter shaded pole motor operates on a versatile 115/208-230V dual voltage configuration, delivering a reliable 1550 RPM for consistent airflow. Designed with a Totally Enclosed Air Over (TEAO) enclosure, it maintains optimal internal temperatures by utilizing the system's own air stream for cooling. The ball bearing design ensures reduced friction and extended service life compared to standard sleeve bearings, while the thermally protected circuitry prevents winding failure during overcurrent events. With a 5/16" x 1.65" shaft and a three-lug mount, this motor provides a precise physical and electrical match for a broad range of condenser fan motor and evaporator motor replacements. For technicians, the CW shaft-end rotation and 40-inch leads simplify terminal connections in tight cabinets.
Key Benefits- Dual Voltage Versatility: Operates seamlessly on 115V or 208-230V single-phase power, reducing the need for multiple stocked parts.
- TEAO Protection: The Totally Enclosed Air Over housing prevents dust and moisture ingress, critical for refrigeration environments.
- Durability and Efficiency: Equipped with ball bearings for high-temperature stability and a heavy-duty rolled steel frame.
- Easy Installation: Features a standard lug mount and a 5/16-inch diameter shaft with a flat for secure fan blade attachment.
Is the D1189 a direct replacement for my Krack Refrigeration unit?
Yes, the Fasco D1189 specifically replaces Krack 11528 and 11529 models, as well as several crossover parts from Century, JA2P216N, and JB2P046N.
Can this motor handle fluctuating ambient temperatures?
This HVAC replacement motor is rated for a 40°C (104°F) ambient temperature and includes Class B insulation to handle typical commercial duty cycles.
What is the rotation direction of the D1189?
The motor is configured for Clockwise (CW) rotation when viewed from the shaft end, which is standard for most compatible condenser applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
