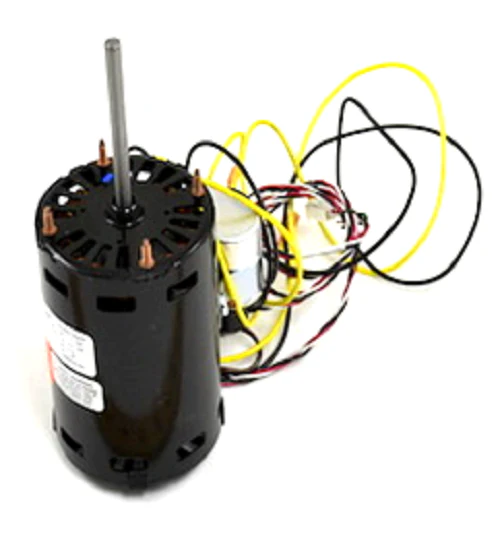

Fasco D1184 Motor
The Fasco D1184 is a professional-grade 3.3-inch diameter OEM replacement motor engineered for high-static pressure applications requiring reliable 460V single-phase power. Operating at a nominal 3450 RPM, this 1/16 HP shaded pole motor features a CCW rotation (lead end) and is specifically designed to function as the direct replacement for Fasco 9625. Built with an open ventilated enclosure to maximize heat dissipation and sleeve bearings for quiet operation, this unit is a standard solution for HVAC blower assemblies and commercial ventilation systems. The motor utilizes a 5/16" x 2 1/4" shaft and requires a 4.0 MFD 370V capacitor for proper startup and torque. When troubleshooting condenser fan motor failures or industrial exhaust issues, the D1184 provides the precise electrical specifications and mechanical footprint necessary for a drop-in installation without field modifications.
Key Benefits for Technicians- Optimized Compatibility: Purpose-built as a drop-in replacement for Fasco 9625, ensuring alignment with existing mounting brackets and fan blades.
- High-Voltage Reliability: Specifically rated for 460V HVAC systems, reducing amperage draw and heat buildup compared to lower voltage alternatives.
- High-Speed Performance: Maintaining 3450 RPM single-speed output ensures consistent airflow in high-demand refrigeration and air conditioning environments.
- Durable Construction: Features Class B insulation and thermal protection to prevent winding failure during continuous duty cycles.
Is the Fasco D1184 reversible?
No, this motor is factory-set for CCW rotation (Counter-Clockwise) as viewed from the lead end. Ensure your fan blade pitch matches this rotation before installation.
What capacitor is required for the D1184 motor?
This shaded pole motor typically does not require a run capacitor, but always verify the specific wiring diagram on the motor housing, as some replacement motors in this frame size may vary.
Can this motor replace a 230V unit?
No, the Fasco D1184 is rated strictly for 460V power. Applying lower voltage will result in insufficient torque and motor burnout.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
