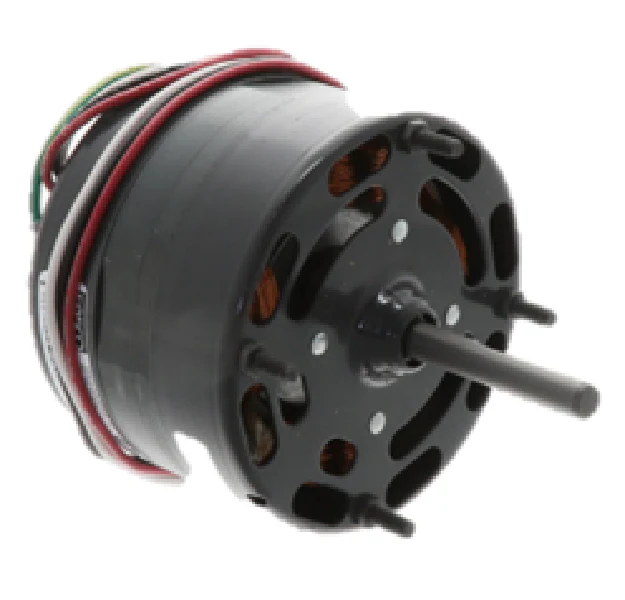

Fasco D118 Motor
The Fasco D118 Motor is a high-performance 1/15-1/30 HP shaded pole motor engineered specifically for demanding HVAC blower motor and attic exhaust applications. Operating at 115V with a nameplate speed of 1500 RPM, this 2-speed motor offers versatile performance for residential and light commercial air-moving equipment. Its 4.4-inch diameter frame and extended stud mounting configuration ensure a secure fit in standard 4.4" bracket systems, making it a reliable direct drive motor replacement for many OEM units.
Designed for longevity in open air over (OAO) environments, the Fasco D118 utilizes durable sleeve bearings and Class A insulation to maintain efficient operation under continuous duty cycles. The unit features thermal protection to prevent overheating during fluctuating loads, while the 3/8" x 2-3/8" shaft provides a standard interface for blower wheels and fan blades. With its clockwise shaft end (CWSE) rotation and dual-speed capability (2.4/1.4 Amps), this motor delivers the torque necessary for consistent airflow and ventilation system recovery.
Key Benefits- Dual-Speed Versatility: Operates at both 1/15 and 1/30 HP ratings to match specific system airflow requirements.
- Thermal Overload Protection: Built-in automatic reset protects the windings from damage during high-ambient or restricted airflow conditions.
- Standardized Mounting: 4.4" frame diameter with extended studs allows for straightforward installation in diverse fan motor housings.
- Efficient Air-Over Cooling: The OAO enclosure design leverages the system's own airflow to dissipate heat, extending the service life of internal components.
- Broad Compatibility: Functions as a high-quality replacement for various general-purpose and attic exhaust motor models.
What are the wiring colors for the high and low speeds?
Typically, the black lead is used for high speed and the red lead for low speed, with white as the common connection. Always verify against the wiring diagram on the motor nameplate before energizing the circuit.
Can this motor be mounted in any orientation?
The Fasco D118 is designed for all-angle mounting, but it is primarily used in horizonal or shaft-up/shaft-down configurations within blower assemblies using the extended studs or a belly band.
Is this a suitable replacement for a PSC motor?
No, this is a shaded pole motor. You should only replace a shaded pole motor with another shaded pole motor to ensure the torque characteristics and electrical draw match the original system design.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
