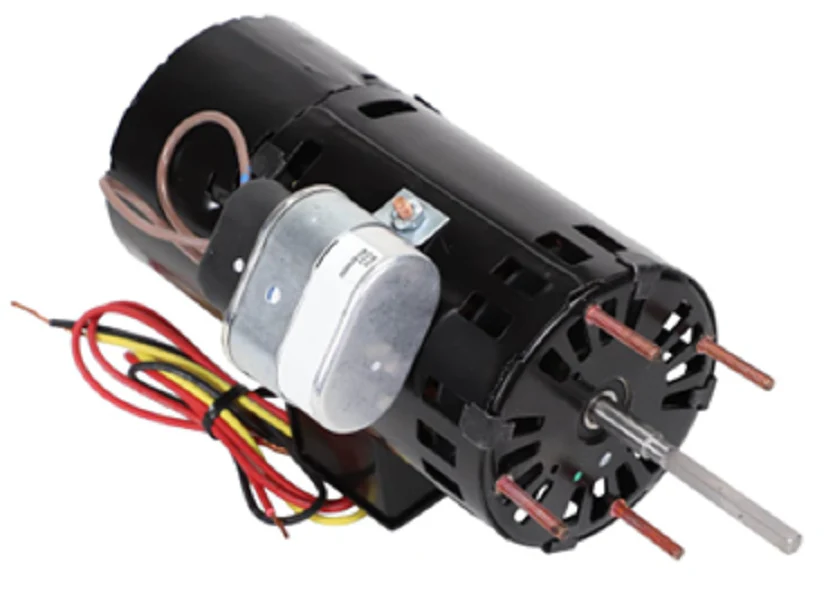

Fasco D1178 Motor
The Fasco D1178 is a high-performance direct replacement motor designed specifically for Carrier and Bryant fan and blower applications. This 3.3-inch diameter motor delivers 1/15 HP with a high-speed 3450 RPM output, ensuring optimal airflow for condensing units and residential furnace systems. Rated for 208-230V, single-phase operation, it features an Open Air Over (OAO) enclosure to facilitate maximum cooling during continuous duty cycles. The unit is built with ball bearings for increased mechanical longevity and a thermally protected design to prevent winding failure under high ambient temperatures (up to 40°C).
For field installations, this PSC electric motor utilizes extended studs for secure mounting and includes a 5/16-inch diameter shaft with a double flat, measuring 2.80 inches in length. This configuration provides a precise fit for existing blower wheels and OEM assemblies. As a 2-pole HVAC motor with Class B insulation, it maintains consistent torque and efficiency, though it requires a 4 MFD/370V capacitor for proper starting (sold separately). When replacing a D1178 motor, verifying the CWSE rotation and the 0.5-amp nameplate rating is essential for maintaining system performance and electrical balance.
Key Benefits- OEM Compatibility: Seamlessly replaces Carrier 680001 and Fasco 7162-3829 units without modification.
- Enhanced Durability: Engineered with ball bearings and a steel frame to withstand the rigors of HVAC/R environments.
- Thermal Management: Features internal thermal protection to safeguard the 1/15 HP fractional horsepower motor from overheating.
- Precise Fit: The 3.3-inch frame and extended studs allow for quick installation in tight blower compartments.
- High Speed: 3450 RPM operation provides the static pressure recovery needed for efficient air movement.
What capacitor is required for the Fasco D1178?
This motor requires a 4 MFD / 370V run capacitor for correct operation. This component is not included and should be replaced during installation for system reliability.
Is this motor reversible?
No, the D1178 is a fixed-rotation motor with a Clockwise Shaft End (CWSE) orientation. Ensure this matches your existing blower configuration before installation.
Can this motor be used in outdoor units?
Yes, its Open Air Over duty rating makes it suitable for condenser fan applications where the motor is located within the airflow stream for cooling.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
