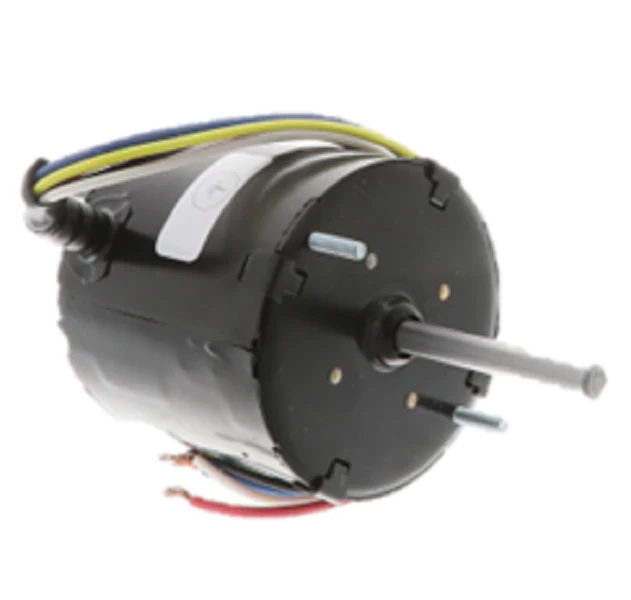

Fasco D1164 Motor
The Fasco D1164 is a professional-grade 3.3-inch diameter motor designed as a direct OEM replacement motor for high-demand HVACR applications. This 1/25 HP shaded pole motor features a dual-voltage configuration (115/230V), allowing technicians to adapt it to various power supplies in the field. Operating at a reliable 1550 RPM, this single-speed unit is thermally protected and utilizes a Totally Enclosed Air Over (TEAO) enclosure to ensure internal components remain shielded from airborne contaminants while maintaining optimal operating temperatures.
Built for durability, the D1164 includes sleeve bearings and 12-inch leads for straightforward wiring. The 5/16" x 2-1/2" shaft with a flat surface ensures a secure fit for fan blades or blowers, and the extended studs on both ends simplify mounting in tight service cabinets. This motor is a common cross-reference for Singer JA2P091N and Dayton 38N574 models, making it a versatile addition to any contractor's service truck for refrigeration and ventilation repairs.
Key Benefits- Dual Voltage Versatility: Compatible with both 115V and 230V systems for reduced inventory needs.
- Reliable Enclosure: TEAO design protects against dust and moisture in the air stream.
- Contractor Grade Mounting: Extended studs and a standard 2.85" bolt circle provide flexible installation options.
- Shaft Compatibility: 5/16" diameter shaft with a flat accommodates standard HVAC fan hubs.
Is this motor reversible?
No, the Fasco D1164 is fixed for CWSE (Clockwise Shaft End) rotation. Always verify the required rotation of your fan blade before installation.
Does this require a capacitor?
As a shaded pole motor, this unit operates without a start or run capacitor, streamlining the electrical setup.
What are the mounting specifications?
This 3.3" frame motor utilizes extended #8-32 studs on both the shaft and lead ends for versatile mounting in various brackets.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
