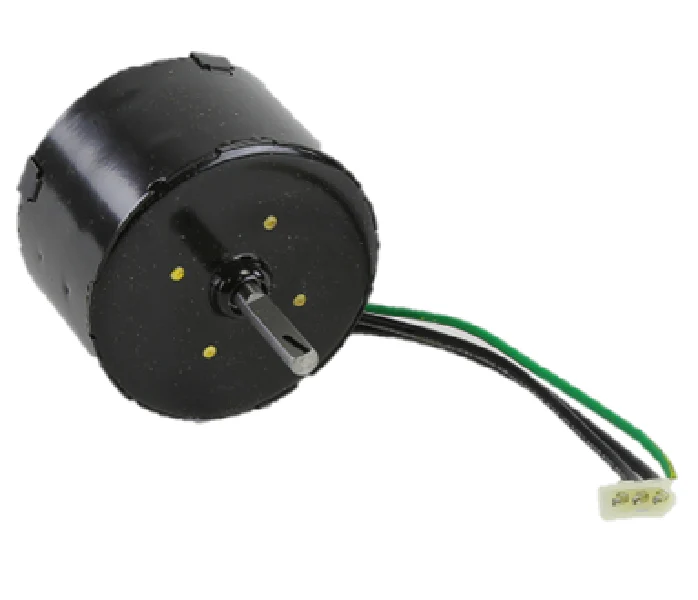

Fasco D1160 Motor
The Fasco D1160 motor is a purpose-built 3.3-inch diameter shaded pole motor designed for high-reliability service in bathroom exhaust fans, range hoods, and small ventilation systems. This 115V AC motor delivers 1/100 HP at a consistent 1550 RPM, making it a drop-in OEM replacement motor for problematic units in residential and light commercial air-moving equipment. Engineered with a totally enclosed air over (TEAO) housing and sleeve bearings, it ensures optimized protection against dust and moisture in humid environments. The 5/16" x 1.6" shaft with flat and extended stud mounting at the lead end simplify the swap-out process for contractors, while the CW rotation (shaft end) maintains precise compatibility with standard blower wheels. Rated for a 0.60 Amp draw and featuring automatic thermal overload protection, this 1-speed unit provides the thermal stability required for continuous-duty cycles in tight HVAC ventilation enclosures.
Key Benefits
- Direct Compatibility: Built to serve as a precise 7163-2593 replacement motor for Broan, Nutone, and Marley ventilation units.
- Rugged Enclosure: The totally enclosed design prevents internal debris accumulation, extending service life in grease-prone or dusty applications.
- Simple Installation: Features extended studs and 7-inch leads with a terminal house for streamlined field wiring.
- Thermal Safety: Equipped with internal automatic overload protection to prevent winding failure during restricted airflow conditions.
- Quiet Operation: Precision-balanced components and shaded pole technology reduce vibrational noise in sensitive residential areas.
Common Questions
What is the rotation direction of the Fasco D1160?
This motor features a Clockwise (CW) rotation when viewed from the shaft end. Always verify your existing blower wheel pitch before installation to ensure proper airflow direction.
Can this motor be used in high-moisture bathroom environments?
Yes, the TEAO enclosure and Class A insulation make it suitable for bathroom vent fan applications where moisture and humidity are present.
How do I mount the D1160 in an existing housing?
The motor utilizes extended studs on the lead end (typically spaced 2-7/8" apart) for secure attachment to typical mounting brackets found in HVAC electric motors of this frame size.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
