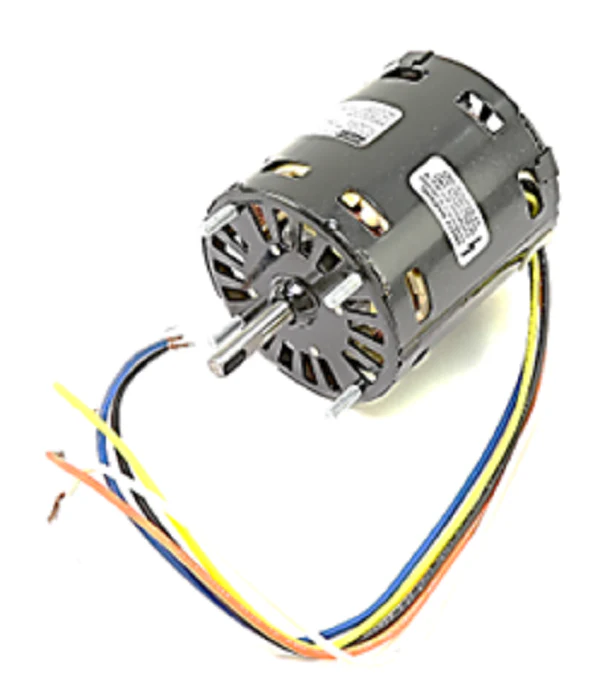

Fasco D1156 Motor
The Fasco D1156 Motor is a heavy-duty, 3.3-inch diameter OEM replacement motor engineered for specific HVACR applications requiring high torque and multi-voltage versatility. This 1/15 HP shaded pole motor features a dual-voltage configuration, operating efficiently at either 115V or 208-230V, making it a versatile bench stock item for service technicians. With a rated speed of 1550 RPM and a 3.0-amp draw at 115V, this CWSE rotation motor provides reliable air movement in refrigeration units and exhaust systems. The unit is designed with an open ventilated enclosure to maximize heat dissipation and utilizes a sleeve bearing system for quiet operation. It features a standard 5/16-inch diameter shaft extending 3 inches, compatible with most blower wheel assemblies and fan blades. This thermally protected motor is a direct drop-in for various Lennox and Intercity products, ensuring seamless integration during field repairs without the need for mounting modifications.
Key Performance Benefits
- Dual Voltage Versatility: Seamlessly switches between 115V and 208-230V circuits for broad application compatibility.
- High-Temperature Resilience: Class B insulation and thermal protection prevent winding failure during high-static operation.
- Precise Fitment: Features a 3.3-inch frame and standard shaft dimensions to match original equipment manufacturer specifications.
- Reliable Lubrication: The sleeve bearing design offers consistent performance in residential and light commercial environments.
- Optimized RPM: 1550 RPM operation ensures the correct CFM delivery for condenser and evaporator cooling cycles.
Common Installation Questions
Is the Fasco D1156 a direct replacement for Lennox furnace or refrigeration motors?
Yes, the Fasco D1156 is a common aftermarket replacement for specific Lennox and Heatcraft part numbers. Verify the frame size and RPM match your existing nameplate data.
Can the rotation direction are changed on this motor?
This specific model is fixed for Clockwise Shaft End (CWSE) rotation. For counter-clockwise applications, ensure your fan blade pitch is compatible with CWSE rotation.
Does this motor require a start or run capacitor?
No, as a shaded pole motor, the D1156 does not require an external capacitor, simplifying the wiring process during replacement.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
