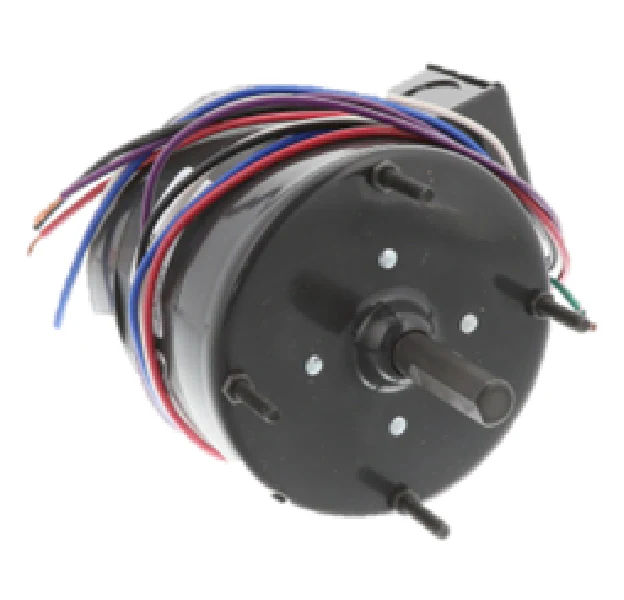

Fasco D115 Motor
The Fasco D115 motor is a purpose-built OEM replacement motor designed for high-performance fan coil units and condenser applications. Engineered with a 4.4-inch diameter and a shaded pole design, this 1/12 HP unit provides reliable 1150 RPM (nameplate standard 1550 RPM at 60Hz) operation across dual voltages of 115/230V. As a totally enclosed air over (TEAO) motor, it is specifically designed to handle the thermal demands of direct airflow environments. The sleeve bearing system and Class A insulation ensure smooth, quiet operation in 40°C ambient temperatures, while the automatic thermal protection safeguards the windings against overheating during heavy cycles.
For field installations, the Fasco D115 features extended studs on the shaft end for secure mounting and a 1/2-inch diameter shaft with a flat to prevent slippage. This single-speed motor includes a integrated conduit box and 26-inch leads, simplifying the wiring process for contractors replacing 7108-2237 or ILG 78-27-721T models. Its CCWSE rotation and single-phase power profile make it a standard choice for maintaining airflow efficiency in residential and commercial heating and cooling equipment without the need for additional capacitors.
Key Benefits
- Dual voltage 115/230V capability allows for flexible field integration in various HVAC power configurations.
- TEAO enclosure protects internal components from airborne contaminants and moisture in air-over applications.
- Automatic thermal overload protection prevents motor burnout during high-load conditions or restricted airflow.
- Standard 4.4" frame and extended stud mounting ensure compatibility with common fan coil and blower assemblies.
- Sleeve bearings are factory-lubricated for low-maintenance operation and reduced vibration.
Common Questions
Can the Fasco D115 be used in a vertical-shaft configuration?
This motor is optimized for horizontal shaft applications as usually found in fan coils; however, it can be utilized in varied orientations provided the TEAO cooling requirements are met.
What is the best way to verify compatibility with an old OEM motor?
Always match the frame diameter (4.4"), shaft dimensions (1/2" x 2"), and amperage draw (2.5/1.3A) to ensure the new motor handles the existing fan load without tripping the thermal protector.
Is a capacitor required for this motor?
No, the Fasco D115 is a shaded pole motor and does not require an external run or start capacitor for operation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
