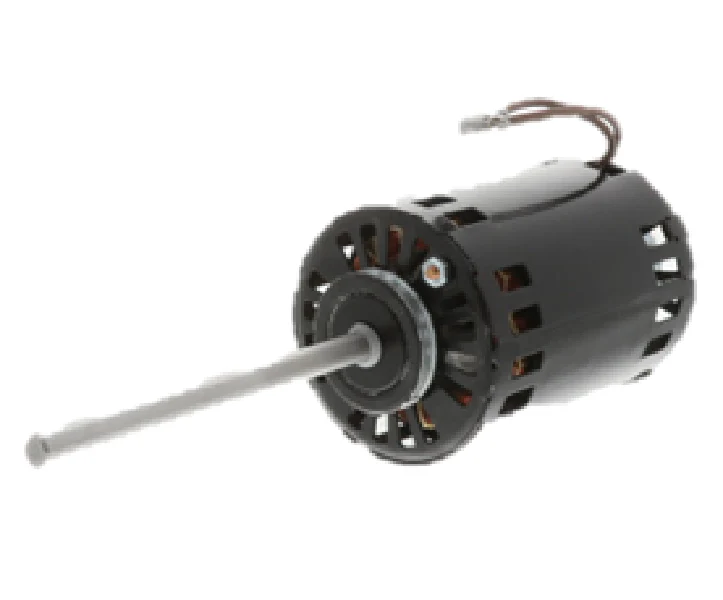

Fasco D1144 Motor
Optimize your HVACR service calls with the Fasco D1144 Motor, an OEM direct replacement motor designed specifically for demanding refrigeration and condenser fan applications. This 3.3-inch diameter, Permanent Split Capacitor (PSC) motor features a multi-horsepower design, functionally replacing 1/25, 1/35, and 1/65 HP requirements in a single unit. Engineered for 115V operation at a consistent 1200 RPM, it offers a three-speed configuration (1.1, 0.9, and 0.6 Amps) to match original system specifications accurately. The assembly includes a 3/8 x 5-5/8 inch shaft with a flat, designed for CWSE rotation (Clockwise Shaft End). Built with sleeve bearings and Class B insulation, this thermally protected motor is rated for 40°C ambient temperatures. For a full McQuay BA2H015 cross-reference or general air-over duty, this open air-over (OAO) resilient ring mount motor ensures reliable performance in the field. Note: A 4 MFD / 370V capacitor is required for operation.
- Versatile Multi-HP Rating: Consolidates inventory by covering 1/25, 1/35, and 1/65 HP applications.
- Precision Speed Control: 3-speed taps allow for fine-tuned airflow to match OEM blower or fan curves.
- Robust Thermal Protection: Integrated automatic overload protection prevents winding failure during restricted airflow conditions.
- Standardized Mounting: 3.3-inch frame with resilient rings facilitates drop-in replacement for most McQuay and various window or refrigeration units.
Common Questions
Is the capacitor included with the Fasco D1144?
Typically, this motor requires an external 4 MFD 370V capacitor. Always check the nameplate diagram before installation to confirm current capacitor requirements, as matched capacitance is critical for PSC motor torque and lifespan.
Can I use this motor to replace a shaded pole motor?
Yes, provided the physical dimensions and 1200 RPM match. Switching to a PSC motor like the D1144 often provides better electrical efficiency and cooler operation than older shaded pole designs.
What is the correct rotation for this model?
The D1144 is rated for CW rotation when looking at the shaft end (CWSE). Verify your fan blade pitch to ensure proper airflow direction before securing the 3/8-inch shaft.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $219.55
-65%$219.55
$76.84Fasco D1144 Motor
Optimize your HVACR service calls with the Fasco D1144 Motor, an OEM direct replacement motor designed specifically for demanding refrigeration and condenser fan applications. This 3.3-inch diameter, Permanent Split Capacitor (PSC) motor features a multi-horsepower design, functionally replacing 1/25, 1/35, and 1/65 HP requirements in a single unit. Engineered for 115V operation at a consistent 1200 RPM, it offers a three-speed configuration (1.1, 0.9, and 0.6 Amps) to match original system specifications accurately. The assembly includes a 3/8 x 5-5/8 inch shaft with a flat, designed for CWSE rotation (Clockwise Shaft End). Built with sleeve bearings and Class B insulation, this thermally protected motor is rated for 40°C ambient temperatures. For a full McQuay BA2H015 cross-reference or general air-over duty, this open air-over (OAO) resilient ring mount motor ensures reliable performance in the field. Note: A 4 MFD / 370V capacitor is required for operation.
- Versatile Multi-HP Rating: Consolidates inventory by covering 1/25, 1/35, and 1/65 HP applications.
- Precision Speed Control: 3-speed taps allow for fine-tuned airflow to match OEM blower or fan curves.
- Robust Thermal Protection: Integrated automatic overload protection prevents winding failure during restricted airflow conditions.
- Standardized Mounting: 3.3-inch frame with resilient rings facilitates drop-in replacement for most McQuay and various window or refrigeration units.
Common Questions
Is the capacitor included with the Fasco D1144?
Typically, this motor requires an external 4 MFD 370V capacitor. Always check the nameplate diagram before installation to confirm current capacitor requirements, as matched capacitance is critical for PSC motor torque and lifespan.
Can I use this motor to replace a shaded pole motor?
Yes, provided the physical dimensions and 1200 RPM match. Switching to a PSC motor like the D1144 often provides better electrical efficiency and cooler operation than older shaded pole designs.
What is the correct rotation for this model?
The D1144 is rated for CW rotation when looking at the shaft end (CWSE). Verify your fan blade pitch to ensure proper airflow direction before securing the 3/8-inch shaft.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
