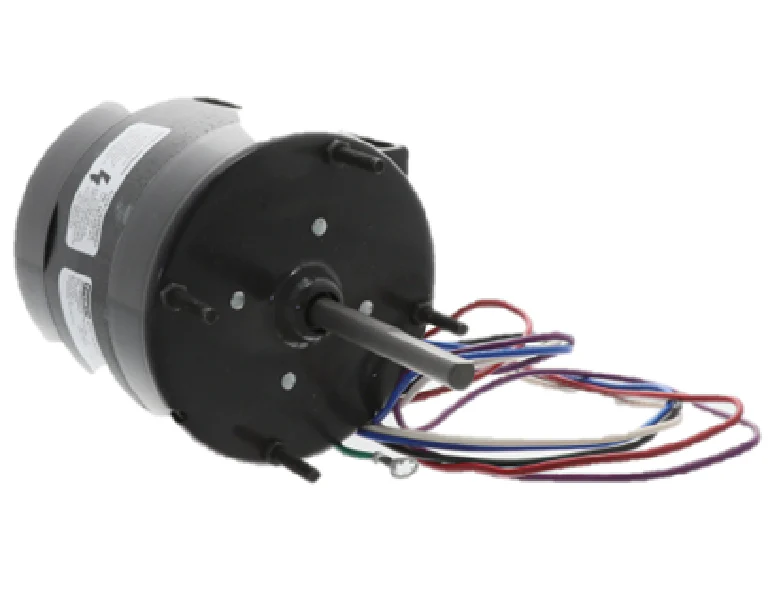

Fasco D113 Motor
The Fasco D113 Motor is a professional-grade, 4.4-inch diameter shaded pole motor engineered for reliable performance in fan coil, air-conditioning, and heating units. Delivering 1/12 HP at a rated speed of 1550 RPM, this single-speed unit features a dual-voltage design, operating efficiently at either 115V or 230V (60Hz). Its totally enclosed air over (TEAO) enclosure ensures the motor remains protected from environmental contaminants while using the driven airflow for cooling. Designed with a CCWSE rotation and a standard 3/8" x 3" shaft, the D113 utilizes sleeve bearings for quiet, long-term operation in continuous-duty applications. The motor is equipped with automatic thermal protection to prevent overheating during high-demand cycles. Installation is streamlined via extended studs on the shaft end, making it a versatile OEM replacement motor for various HVACR systems including ventilators and unit heaters.
Key Benefits:- Dual Voltage Capability: Operates on both 115V and 230V configurations for maximum field flexibility.
- TEAO Enclosure: The totally enclosed air over design provides superior protection against internal dust and debris.
- High-Torque Performance: Optimized shaded pole design provides consistent 1550 RPM for light-duty air-moving applications.
- Simplified Mounting: Features extended studs and a 3.89" bolt circle for quick integration into existing brackets.
- Reliable Bearings: Durable sleeve bearings allow for smooth, low-friction operation in residential and commercial units.
What is the shaft size for the Fasco D113?
The motor features a 3/8 inch diameter shaft with a 3 inch extension, including a flat for secure fan blade or blower wheel attachment.
Can this motor replace a 208V unit?
Yes, the Fasco D113 is rated for 230V and is typically compatible with 208-230V single-phase power supplies used in HVAC equipment.
Which direction does the D113 rotate?
This model is set for CCWSE (Counter-Clockwise Shaft End) rotation; verify your fan pitch to ensure proper airflow direction before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $405.51
-65%$405.51
$141.93Fasco D113 Motor
The Fasco D113 Motor is a professional-grade, 4.4-inch diameter shaded pole motor engineered for reliable performance in fan coil, air-conditioning, and heating units. Delivering 1/12 HP at a rated speed of 1550 RPM, this single-speed unit features a dual-voltage design, operating efficiently at either 115V or 230V (60Hz). Its totally enclosed air over (TEAO) enclosure ensures the motor remains protected from environmental contaminants while using the driven airflow for cooling. Designed with a CCWSE rotation and a standard 3/8" x 3" shaft, the D113 utilizes sleeve bearings for quiet, long-term operation in continuous-duty applications. The motor is equipped with automatic thermal protection to prevent overheating during high-demand cycles. Installation is streamlined via extended studs on the shaft end, making it a versatile OEM replacement motor for various HVACR systems including ventilators and unit heaters.
Key Benefits:- Dual Voltage Capability: Operates on both 115V and 230V configurations for maximum field flexibility.
- TEAO Enclosure: The totally enclosed air over design provides superior protection against internal dust and debris.
- High-Torque Performance: Optimized shaded pole design provides consistent 1550 RPM for light-duty air-moving applications.
- Simplified Mounting: Features extended studs and a 3.89" bolt circle for quick integration into existing brackets.
- Reliable Bearings: Durable sleeve bearings allow for smooth, low-friction operation in residential and commercial units.
What is the shaft size for the Fasco D113?
The motor features a 3/8 inch diameter shaft with a 3 inch extension, including a flat for secure fan blade or blower wheel attachment.
Can this motor replace a 208V unit?
Yes, the Fasco D113 is rated for 230V and is typically compatible with 208-230V single-phase power supplies used in HVAC equipment.
Which direction does the D113 rotate?
This model is set for CCWSE (Counter-Clockwise Shaft End) rotation; verify your fan pitch to ensure proper airflow direction before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
