Fasco D1124 Motor

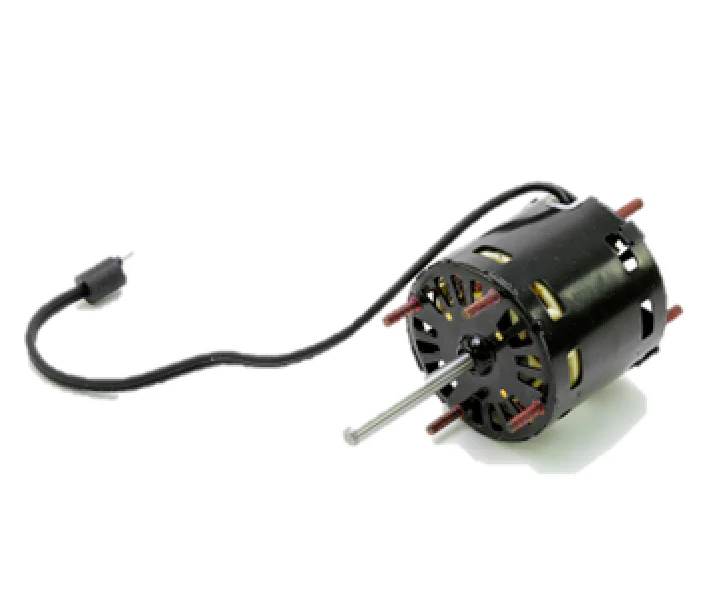

The Fasco D1124 Shaded Pole Motor is a high-performance 1/20 HP OEM replacement motor engineered for refrigeration and evaporator applications. Operating at 1550 RPM on a 115V single-phase power supply, this 3.3-inch diameter motor delivers 2.1 Amps of reliable power. It features a CW shaft end rotation and a 5/16" x 3" flat shaft, making it a drop-in solution for Bohn, Heatcraft, and Chandler units. Built with an Open Air Over (OAO) enclosure and sleeve bearings, the unit utilizes Shell Turbo 68 low-temperature oil rated for -40°F environments, ensuring consistent start-up in cold storage conditions. The motor is equipped with automatic thermal overload protection, 4-stud mounting at both ends, and a 13-inch lead with a molded 2-pin plug for secure electrical integration. This Fasco D1124 refrigeration motor is the industry standard for maintaining airflow in walk-in coolers and display cases.
Key Benefits
- Direct OEM Compatibility: Replaces common part numbers including Bohn 5034L, 5008SS, and 5KSM59JSK143S.
- Low-Temperature Performance: Special -40°F low-temp oil allows for reliable operation in freezing evaporator environments.
- Robust Construction: Features Class B insulation and durable steel frame for extended service life in commercial HVACR settings.
- Ease of Installation: Designed with extended studs on both ends and a pre-installed molded plug for fast field replacement.
Common Questions
What is the correct rotation for the D1124?
The Fasco D1124 is a Clockwise (CW) rotation motor as viewed from the shaft end. Always verify your existing fan blade pitch to ensure proper airflow direction.
Can this motor be used in a -40°F walk-in freezer?
Yes, this motor is specifically engineered with low-temperature lubrication to prevent seizing in industrial freezer and refrigeration applications.
Is this a multi-speed motor?
No, this is a single-speed 1550 RPM shaded pole motor designed for constant duty cycles.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
