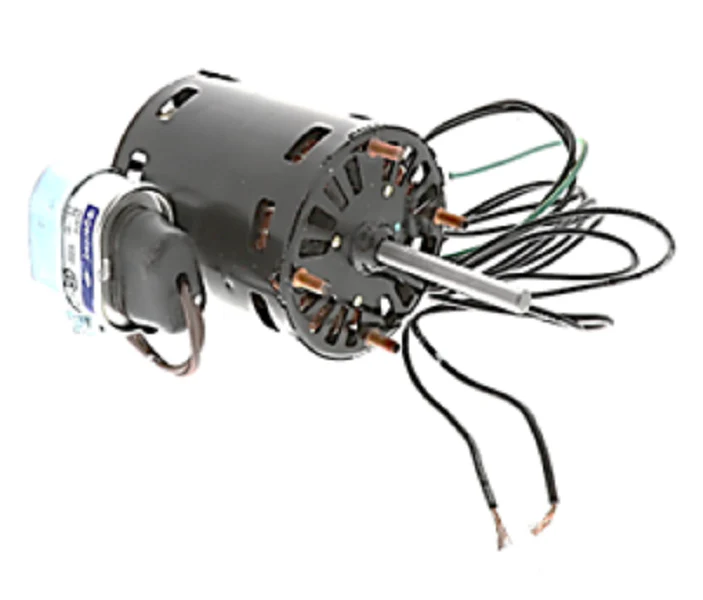

Fasco D1123 Motor
The Fasco D1123 Motor is a high-performance 1/15 HP OEM replacement motor engineered for demanding refrigeration and HVACR applications. Operating at 208/230V and a nominal 1550 RPM, this 3.3-inch diameter motor is designed to replace aging or failed units in Heatcraft refrigeration systems and walk-in coolers. As a Permanent Split Capacitor (PSC) motor, it provides efficient operation with a low amp draw of approximately 0.5A, helping to maintain system TESP and airflow requirements. The CCW rotation (Counter-Clockwise Shaft End) and sleeve bearing design ensure quiet, reliable performance in Open Air Over (OAO) environments. This motor features a 5/16-inch x 2 5/8-inch shaft and extended studs for versatile mounting in standard condenser fan and evaporator coil assemblies. Technicians can rely on the thermal protection and Class B insulation to handle the thermal cycling common in commercial refrigeration cycles.
Key Benefits:- Direct OEM Fit: Drop-in replacement for Heatcraft 25309101 and 7190-2285 models, reducing field modification time.
- Efficient PSC Design: Utilizes a 4MFD 370V capacitor for optimized torque and lower energy consumption compared to shaded pole alternatives.
- Robust Construction: Built with sleeve bearings and specialized low-temperature oil, making it ideal for refrigeration fans.
- Versatile Mounting: Includes extended studs on the shaft end and supports belly band mounting for various housing configurations.
What are the primary crossover references for the Fasco D1123?
This motor is a common replacement for Heatcraft models 7190-2285, 7190-3004, and 25309101, as well as the Dayton 48GN46.
Is the capacitor included with this motor?
Yes, this PSC motor typically includes the required 4MFD/370VAC capacitor to ensure proper starting torque and operational efficiency.
Can this motor be used in outdoor condenser units?
The D1123 is an Open Air Over (OAO) motor, meaning it relies on the moving air stream for cooling. It is suitable for protected environments like walk-in coolers and specific condenser fan applications where it is shielded from direct precipitation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
