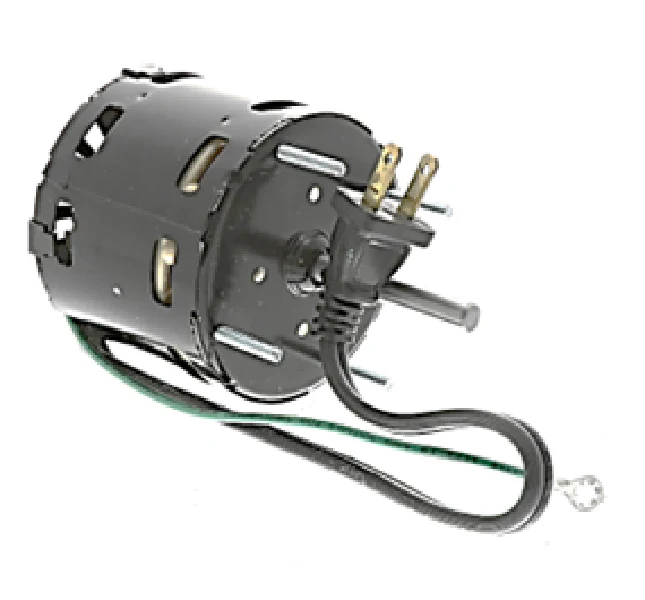

Fasco D1117 Motor
For service calls requiring a reliable low-profile solution, the Fasco D1117 motor is a purpose-built OEM replacement motor designed for HVAC refrigeration fan applications and specific Loren Cook exhaust blower units. This 3.3-inch diameter motor features a shaded pole design with 1/65 HP output, operating at a fixed 1590 RPM on a standard 115V circuit. Built for longevity in light-duty environments, it utilizes sleeve bearings and Class B insulation rated for a 40°C ambient temperature. The open air over (OAO) enclosure ensures the internal windings remain cool during continuous duty, while the thermally protected construction prevents burnout during high-load conditions. The 5/16-inch diameter shaft is 2.25 inches long with a flat, secured via extended studs on the shaft end for a precise fit. Cross-referencing Loren Cook 7163-7818, 615049, and GC140, this 0.6 amp motor with CW shaft end rotation is the industry standard for maintaining airflow in compact ventilation systems.
Key Benefits- Direct OEM Compatibility: Engineered as a drop-in Fasco D1117 replacement for Loren Cook and Dayton 48GN42 units, reducing installation downtime.
- Industrial Build Quality: Features shaded pole motor technology and thermally protected windings for reliable operation in refrigeration environments.
- Simplified Wiring: Equipped with an 11-inch lead set and a factory-molded plug for rapid connection to existing 115V power supplies.
- Versatile Mounting: The 3.3-inch frame and extended stud mount configuration allow for easy integration into narrow blower housings.
What is the rotation of the D1117 motor?
The Fasco D1117 features clockwise (CW) rotation when viewed from the shaft end, which is critical for proper airflow direction in exhaust applications.
Can this motor be used in outdoor condenser units?
While it is an open air over motor, it is primarily designed for indoor refrigeration fan and exhaust blower assemblies where it is protected from direct moisture but receives constant cooling airflow.
Does this motor require a capacitor?
No, this is a shaded pole motor, meaning it does not require a start or run capacitor, simplifying the electrical troubleshooting process.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $133.62
-65%$133.62
$46.77Fasco D1117 Motor
For service calls requiring a reliable low-profile solution, the Fasco D1117 motor is a purpose-built OEM replacement motor designed for HVAC refrigeration fan applications and specific Loren Cook exhaust blower units. This 3.3-inch diameter motor features a shaded pole design with 1/65 HP output, operating at a fixed 1590 RPM on a standard 115V circuit. Built for longevity in light-duty environments, it utilizes sleeve bearings and Class B insulation rated for a 40°C ambient temperature. The open air over (OAO) enclosure ensures the internal windings remain cool during continuous duty, while the thermally protected construction prevents burnout during high-load conditions. The 5/16-inch diameter shaft is 2.25 inches long with a flat, secured via extended studs on the shaft end for a precise fit. Cross-referencing Loren Cook 7163-7818, 615049, and GC140, this 0.6 amp motor with CW shaft end rotation is the industry standard for maintaining airflow in compact ventilation systems.
Key Benefits- Direct OEM Compatibility: Engineered as a drop-in Fasco D1117 replacement for Loren Cook and Dayton 48GN42 units, reducing installation downtime.
- Industrial Build Quality: Features shaded pole motor technology and thermally protected windings for reliable operation in refrigeration environments.
- Simplified Wiring: Equipped with an 11-inch lead set and a factory-molded plug for rapid connection to existing 115V power supplies.
- Versatile Mounting: The 3.3-inch frame and extended stud mount configuration allow for easy integration into narrow blower housings.
What is the rotation of the D1117 motor?
The Fasco D1117 features clockwise (CW) rotation when viewed from the shaft end, which is critical for proper airflow direction in exhaust applications.
Can this motor be used in outdoor condenser units?
While it is an open air over motor, it is primarily designed for indoor refrigeration fan and exhaust blower assemblies where it is protected from direct moisture but receives constant cooling airflow.
Does this motor require a capacitor?
No, this is a shaded pole motor, meaning it does not require a start or run capacitor, simplifying the electrical troubleshooting process.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
