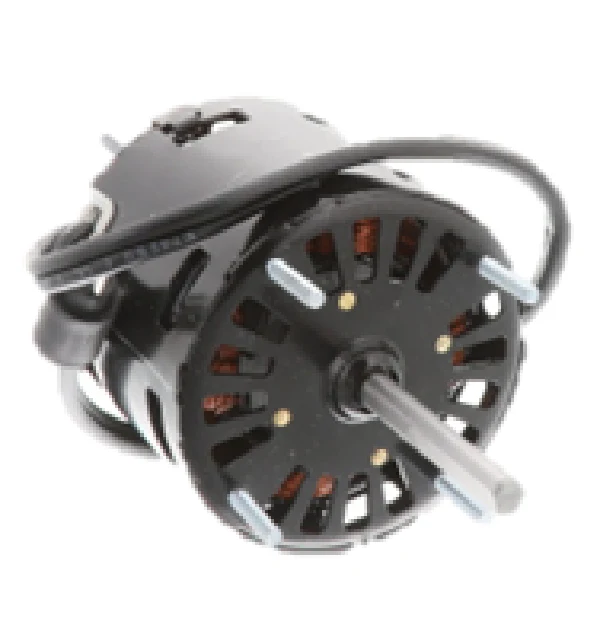

Fasco D1101 Motor
The Fasco D1101 Motor is a specialized 1/20 HP OEM replacement motor designed for demanding commercial refrigeration and HVAC/R applications. Engineered as a 3.3-inch diameter shaded pole motor, this legacy-standard component operates at 115V and a nominal 1500 RPM, providing reliable torque for condenser fans and walk-in cooler evaporators. It serves as a drop-in Larkin 253-1194 replacement, featuring counter-clockwise shaft end (CCWSE) rotation and a 5/16" x 2-1/4" flat shaft for precise blower wheel attachment. The open air-over (OAO) enclosure utilizes the system's airflow to maintain optimal operating temperatures, while the thermally protected design prevents winding failure during overcurrent events. With its extended stud mounting (2.85" bolt circle) and sleeve bearings lubricated with low-temperature oil, this Fasco refrigeration motor ensures continuous duty performance in high-moisture, cold-storage environments.
Key Benefits- Direct OEM Compatibility: Replaces specific Larkin Coil 253-1194, Bohn, and Chandler motors, eliminating the need for mounting modifications in the field.
- Reliable Shaded Pole Design: A single-speed 115V motor built for simplicity and longevity in constant-duty refrigeration cycles.
- All-Weather Performance: Features specialized low-temperature oil in the sleeve bearings to ensure smooth startups in walk-in freezers and coolers.
- Ease of Installation: Equipped with a 14-inch lead length and a molded round 2-pin plug for rapid electrical connection to existing harnesses.
- Internal Safety: Automatic thermal overload protection safeguards the unit against overheating without requiring manual resets.
Is the Fasco D1101 a reversible motor?
No, this model is fixed for CCWSE (Counter-Clockwise Shaft End) rotation. Always verify the rotation of your existing blower or fan blade before installation to ensure proper airflow direction.
What are the specific mounting dimensions for the D1101?
The motor uses extended studs on both ends with a standard 2.85-inch bolt circle. The 3.3-inch frame diameter fits most standard refrigeration fan brackets.
Can this motor be used in high-ambient environments?
This OAO motor is rated for a maximum ambient temperature of 40°C (104°F) and requires adequate airflow over the motor body to maintain its Class B insulation rating.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
