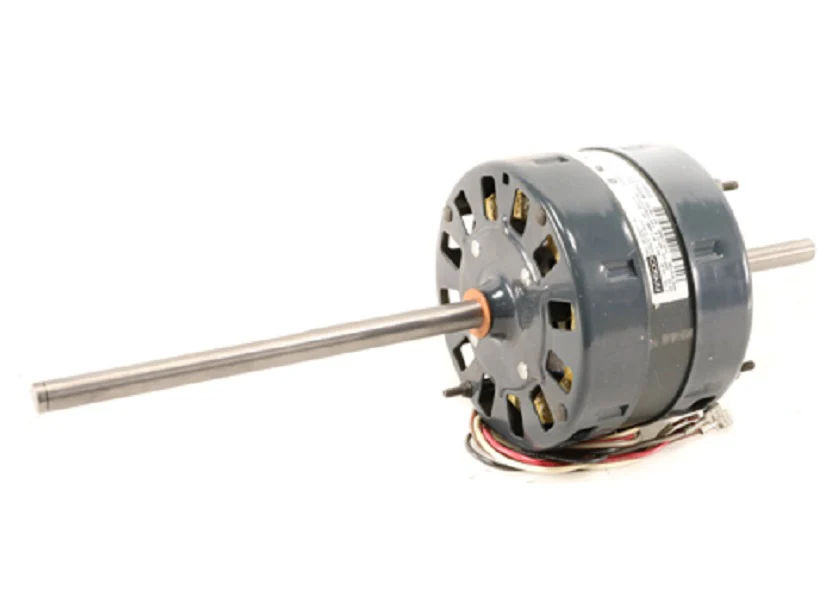

Fasco D1092 Motor
The Fasco D1092 Motor is a heavy-duty, 1/3 HP 115V direct replacement engineered specifically for the demanding environments of Coleman Mach RV air conditioner units. As a dual-shaft, 2-speed HVAC motor, it delivers high-performance 1675/1080 RPM operation, ensuring optimal airflow for both cooling and heating cycles. Built on a NEMA 42 frame with an open air over (OAO) enclosure, this motor utilizes a permanent split capacitor (PSC) design for improved electrical efficiency and thermal stability. For the seasoned tech, the Fasco D1092 features sleeve bearings and automatic thermal overload protection, providing a reliable solution for RV AC fan motor replacement in 6000 and 8000 series rooftop units. This OEM direct replacement motor cross-references with part numbers 1468-3069, 7184-0156, and 7184-0432. Note that a 7.5 MFD 370V capacitor is required for installation. The 5-inch diameter body and double shaft configuration ensure a seamless fit into existing belly band or stud mounts.
Key Benefits- Dual-Speed Versatility: Direct-drive 2-speed operation at 1675/1080 RPM allows for precise airflow control in various RV HVAC conditions.
- Broad Compatibility: Engineered as a drop-in replacement for Coleman Mach 1468-3069 and multiple Airxcel series rooftop units.
- Enhanced Reliability: Features Class B insulation and an automatic overload protector to prevent winding failure during high-ambient operation.
- Double-Shaft Design: The 1/2-inch diameter double shaft with flats allows for simultaneous driving of both the condenser fan and evaporator blower.
Is the capacitor included with the Fasco D1092?
Specifications may vary by production batch; however, this motor typically requires a 7.5 MFD / 370V run capacitor for operation. Always verify the ratings on your existing capacitor or provide a fresh one during the swap to ensure proper phase shift and torque.
Will this motor fit a Coleman Mach 3 or Mach 15 unit?
Yes, this 1/3 HP motor is the standard OEM replacement for most Coleman Mach 3, Mach 3 Plus, and Mach 15 series units using the 1468-3069 part number. Always check the shaft length and diameter on your specific nameplate before installation.
What is the rotation direction for this motor?
The Fasco D1092 is designed with a specific rotation (CWLE/CCWSE) to match original fan blade and blower wheel pitches. Ensure you verify the rotation against your old unit to maintain correct static pressure and airflow direction.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $176.55
-65%$176.55
$61.79Fasco D1092 Motor
The Fasco D1092 Motor is a heavy-duty, 1/3 HP 115V direct replacement engineered specifically for the demanding environments of Coleman Mach RV air conditioner units. As a dual-shaft, 2-speed HVAC motor, it delivers high-performance 1675/1080 RPM operation, ensuring optimal airflow for both cooling and heating cycles. Built on a NEMA 42 frame with an open air over (OAO) enclosure, this motor utilizes a permanent split capacitor (PSC) design for improved electrical efficiency and thermal stability. For the seasoned tech, the Fasco D1092 features sleeve bearings and automatic thermal overload protection, providing a reliable solution for RV AC fan motor replacement in 6000 and 8000 series rooftop units. This OEM direct replacement motor cross-references with part numbers 1468-3069, 7184-0156, and 7184-0432. Note that a 7.5 MFD 370V capacitor is required for installation. The 5-inch diameter body and double shaft configuration ensure a seamless fit into existing belly band or stud mounts.
Key Benefits- Dual-Speed Versatility: Direct-drive 2-speed operation at 1675/1080 RPM allows for precise airflow control in various RV HVAC conditions.
- Broad Compatibility: Engineered as a drop-in replacement for Coleman Mach 1468-3069 and multiple Airxcel series rooftop units.
- Enhanced Reliability: Features Class B insulation and an automatic overload protector to prevent winding failure during high-ambient operation.
- Double-Shaft Design: The 1/2-inch diameter double shaft with flats allows for simultaneous driving of both the condenser fan and evaporator blower.
Is the capacitor included with the Fasco D1092?
Specifications may vary by production batch; however, this motor typically requires a 7.5 MFD / 370V run capacitor for operation. Always verify the ratings on your existing capacitor or provide a fresh one during the swap to ensure proper phase shift and torque.
Will this motor fit a Coleman Mach 3 or Mach 15 unit?
Yes, this 1/3 HP motor is the standard OEM replacement for most Coleman Mach 3, Mach 3 Plus, and Mach 15 series units using the 1468-3069 part number. Always check the shaft length and diameter on your specific nameplate before installation.
What is the rotation direction for this motor?
The Fasco D1092 is designed with a specific rotation (CWLE/CCWSE) to match original fan blade and blower wheel pitches. Ensure you verify the rotation against your old unit to maintain correct static pressure and airflow direction.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
