Fasco D1091 Motor

Fasco D1091 Motor

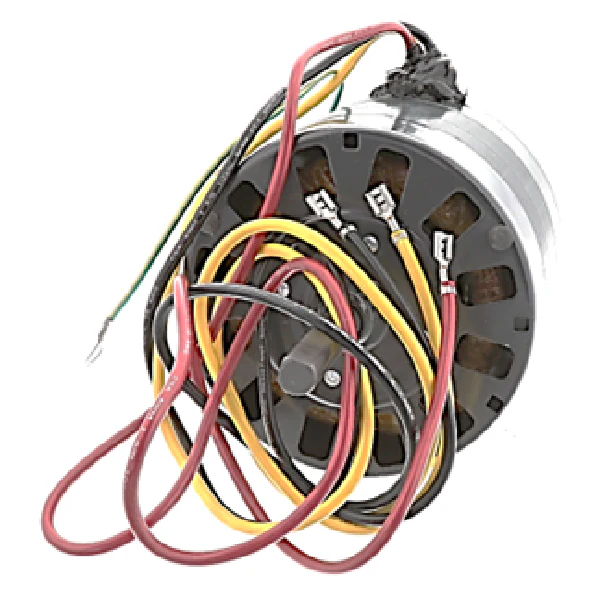

The Fasco D1091 is a professional-grade OEM direct replacement motor engineered for high-demand HVAC blower motor applications, specifically serving as a drop-in solution for Magic Chef units. This 1/4 HP condenser fan motor operates on a 208-230V single-phase power supply at a nominal 1075 RPM. As a Permanent Split Capacitor (PSC) motor, it provides consistent torque and enhanced energy efficiency compared to shaded pole alternatives. It features a 5-inch diameter (42 frame) with an Open Air Over (OAO) enclosure, ensuring optimal heat dissipation during continuous operation. The CCW rotation (counter-clockwise shaft end) and 1/2" x 2-3/4" shaft with a flat side facilitate seamless mechanical coupling. Built with reliable sleeve bearings and automatic thermal overload protection, this Fasco motor is designed to maintain system integrity in light commercial and residential environments.

Key Benefits
  • Exact OEM Compatibility: Directly replaces Magic Chef 35035B001, 322P859, and DE3L038 without bracket modifications.
  • Efficient PSC Design: Utilizes a 5 MFD / 370V capacitor (sold separately) to provide reliable starting torque and lower amperage draw.
  • Robust Construction: Features a rolled steel 42-frame housing and sleeve bearings for quiet, long-lasting performance in Open Air Over environments.
  • Safety Integrated: Equipped with an automatic reset thermal protector to prevent winding failure during over-temperature conditions.
Common Questions What are the primary applications for the Fasco D1091? The Fasco D1091 is primarily used as a direct replacement motor for Magic Chef furnaces and air handlers. Its 1075 RPM speed and 1/4 HP rating make it ideal for residential direct drive blower assemblies. Which capacitor is required for this 230V motor? To ensure proper phase shift and motor life, this unit requires a 5 MFD 370V run capacitor. Using an incorrectly rated capacitor will result in overheating and potential motor failure. Can the rotation of the D1091 be reversed? No, the Fasco D1091 is a fixed-rotation motor set to CCW shaft end (Counter-Clockwise). Always verify the rotation of your existing blower wheel before installation.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
