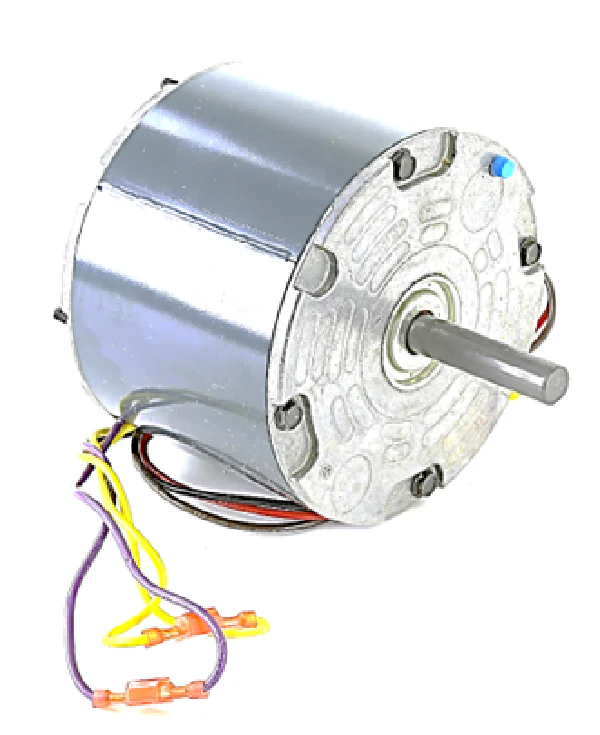

Fasco D1071 Motor
As a direct OEM replacement for Heil-Quaker units, the Fasco D1071 Motor is a high-reliability solution for critical furnace and blower applications. Designed with a 42-frame diameter (5.1 inches), this 1/6 HP HVAC motor operates at 1100 RPM on a 208-230V single-phase circuit. It features a Permanent Split Capacitor (PSC) design, requiring a 5 MFD 370V capacitor for proper startup and torque. Built with a reversible rotation and a 1/2" x 2-1/8" flat shaft, it offers the flexibility needed for various field configurations. The Totally Enclosed Air Over (TEAO) enclosure and automatic thermal protection ensure the internal windings are shielded from dust and debris while preventing overheating during continuous duty cycles. Whether you are performing a mid-season service or a full system overhaul, the Fasco D1071 provides a drop-in fit with extended studs and belly band mounting options, making it a staple for any technician's truck stock when searching for a Heil-Quaker replacement motor.
Key Benefits- Broad Compatibility: Serves as a direct cross-reference for Heil-Quaker part numbers HQ1052662EM and 48HXCLW-1562.
- Durable Construction: Equipped with ball bearings and class B insulation for extended service life in demanding environments.
- Field Flexibility: Reversible rotation and multiple mounting options (belly band or extended studs) simplify installation.
- Efficient Performance: Low 0.99 Amp draw helps maintain system efficiency and reduces operational heat.
Does this motor include the run capacitor?
No, this motor requires a 5 MFD 370V capacitor, which must be purchased separately if yours is out of spec.
Can I use this for both 208V and 230V systems?
Yes, the Fasco D1071 is rated for both 208V and 230V single-phase applications commonly found in residential and light commercial units.
How do I change the rotation on this motor?
The motor features reversing leads; simply swap the jumpers according to the wiring diagram on the nameplate to match your blower's requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $201.21
-65%$201.21
$70.42Fasco D1071 Motor
As a direct OEM replacement for Heil-Quaker units, the Fasco D1071 Motor is a high-reliability solution for critical furnace and blower applications. Designed with a 42-frame diameter (5.1 inches), this 1/6 HP HVAC motor operates at 1100 RPM on a 208-230V single-phase circuit. It features a Permanent Split Capacitor (PSC) design, requiring a 5 MFD 370V capacitor for proper startup and torque. Built with a reversible rotation and a 1/2" x 2-1/8" flat shaft, it offers the flexibility needed for various field configurations. The Totally Enclosed Air Over (TEAO) enclosure and automatic thermal protection ensure the internal windings are shielded from dust and debris while preventing overheating during continuous duty cycles. Whether you are performing a mid-season service or a full system overhaul, the Fasco D1071 provides a drop-in fit with extended studs and belly band mounting options, making it a staple for any technician's truck stock when searching for a Heil-Quaker replacement motor.
Key Benefits- Broad Compatibility: Serves as a direct cross-reference for Heil-Quaker part numbers HQ1052662EM and 48HXCLW-1562.
- Durable Construction: Equipped with ball bearings and class B insulation for extended service life in demanding environments.
- Field Flexibility: Reversible rotation and multiple mounting options (belly band or extended studs) simplify installation.
- Efficient Performance: Low 0.99 Amp draw helps maintain system efficiency and reduces operational heat.
Does this motor include the run capacitor?
No, this motor requires a 5 MFD 370V capacitor, which must be purchased separately if yours is out of spec.
Can I use this for both 208V and 230V systems?
Yes, the Fasco D1071 is rated for both 208V and 230V single-phase applications commonly found in residential and light commercial units.
How do I change the rotation on this motor?
The motor features reversing leads; simply swap the jumpers according to the wiring diagram on the nameplate to match your blower's requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
As a direct OEM replacement for Heil-Quaker units, the Fasco D1071 Motor is a high-reliability solution for critical furnace and blower applications. Designed with a 42-frame diameter (5.1 inches), this 1/6 HP HVAC motor operates at 1100 RPM on a 208-230V single-phase circuit. It features a Permanent Split Capacitor (PSC) design, requiring a 5 MFD 370V capacitor for proper startup and torque. Built with a reversible rotation and a 1/2" x 2-1/8" flat shaft, it offers the flexibility needed for various field configurations. The Totally Enclosed Air Over (TEAO) enclosure and automatic thermal protection ensure the internal windings are shielded from dust and debris while preventing overheating during continuous duty cycles. Whether you are performing a mid-season service or a full system overhaul, the Fasco D1071 provides a drop-in fit with extended studs and belly band mounting options, making it a staple for any technician's truck stock when searching for a Heil-Quaker replacement motor.
Key Benefits- Broad Compatibility: Serves as a direct cross-reference for Heil-Quaker part numbers HQ1052662EM and 48HXCLW-1562.
- Durable Construction: Equipped with ball bearings and class B insulation for extended service life in demanding environments.
- Field Flexibility: Reversible rotation and multiple mounting options (belly band or extended studs) simplify installation.
- Efficient Performance: Low 0.99 Amp draw helps maintain system efficiency and reduces operational heat.
Does this motor include the run capacitor?
No, this motor requires a 5 MFD 370V capacitor, which must be purchased separately if yours is out of spec.
Can I use this for both 208V and 230V systems?
Yes, the Fasco D1071 is rated for both 208V and 230V single-phase applications commonly found in residential and light commercial units.
How do I change the rotation on this motor?
The motor features reversing leads; simply swap the jumpers according to the wiring diagram on the nameplate to match your blower's requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
