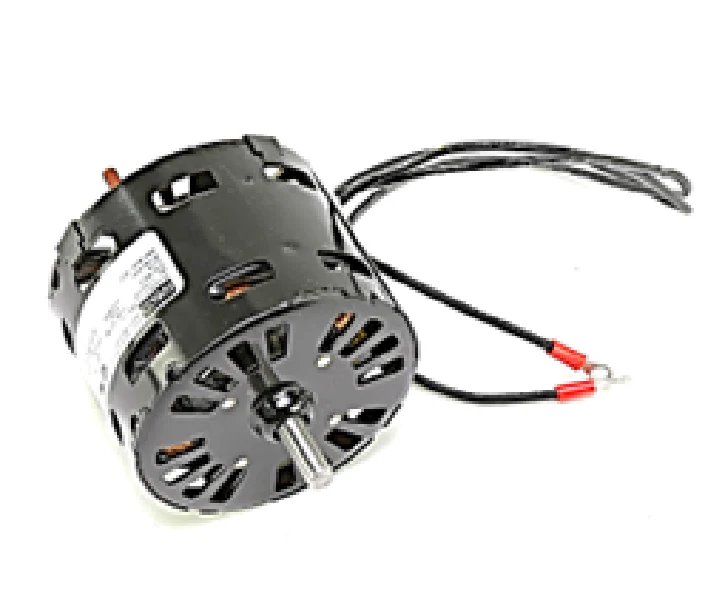

Fasco D107 Motor
The Fasco D107 motor is a 3.3-inch diameter, shaded pole fan motor engineered for continuous-duty HVACR applications. Operating within a 208-240V range, this single-speed unit delivers a versatile output of 1/160-1/120 HP at a rated speed of 600 RPM. Designed for Open Air Over (OAO) environments, the D107 utilizes sleeve bearings and Class B insulation to maintain thermal stability in ambient temperatures up to 40°C. For contractors performing direct-drive replacements, this motor features CCWSE rotation (Counterclockwise Shaft End) and a 5/16-inch diameter by 1-inch long shaft with a flat. The thermally protected design and extended stud mounting (opposite shaft end) ensure a secure fit and reliable performance in residential and light commercial blowers or exhaust fans. This 12-pole motor draws approximately 0.50 Amps, making it a high-efficiency choice for direct OEM replacement in various ventilation systems.
Key Benefits- Precision Airflow Control: Operates at a steady 600 RPM to ensure consistent static pressure in 208-240V fan and blower assemblies.
- Compact Form Factor: The 3.3-inch frame and 2.32-inch shell length allow for installation in tight HVAC/R housing compartments.
- Durable Construction: Features a steel frame and sleeve bearings designed for long-term reliability in continuous "Air Over" applications.
- Streamlined Installation: Equipped with 16-inch leads and four extended studs (2-7/8" bolt circle) for quick mounting in standard brackets.
What is the direction of rotation for the Fasco D107?
The motor is designed for Counterclockwise Shaft End (CCWSE) rotation. Always verify the rotation of your original blower wheel to ensure technical compatibility before installation.
Can this motor be used in totally enclosed environments?
No, the D107 is an Open Air Over (OAO) motor. It requires the airflow from the fan it is driving to pass over the motor shell to prevent overheating during operation.
Does the D107 require a start or run capacitor?
This is a shaded pole motor, which does not require an external capacitor for operation, simplifying the wiring process for technicians.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
