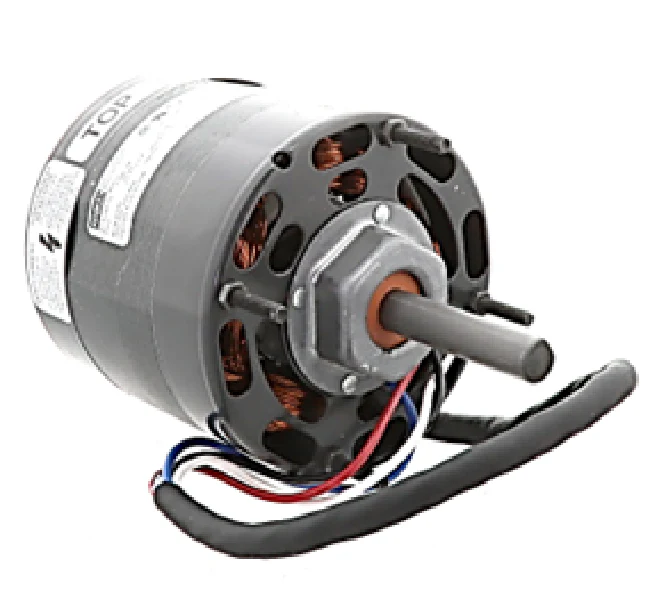

Fasco D1061 Motor
The Fasco D1061 Motor is a high-performance shaded pole replacement motor engineered for specific Greenheck OEM applications and general-purpose ventilation. This 4.4" diameter 3-speed blower motor provides multi-stage airflow control with ratings of 1/20, 1/30, and 1/60 HP at 115V. Operating at a high speed of 1500 RPM, it features an Open Air Over (OAO) enclosure and sleeve bearings for quiet, continuous-duty performance in attic exhaust fans and HVAC duct blowers. With a CCW shaft end rotation, 1/2" diameter shaft, and thermal protection, this motor is a drop-in direct replacement for standard 7108-2425 and 1AGF8 models. The dual-bolt circle mounting and 4 1/8" shell length ensure a precise fit in tight OEM blower housings. Technicians prefer the Fasco D1061 for its reliable 60Hz single-phase operation and versatility across multi-load residential and commercial ventilation systems.
Key Benefits
- Multi-Speed Flexibility: Features 3-speed capability (1500/1300/1050 RPM) allowing for precise airflow adjustment in HVAC ventilation systems.
- OEM Compatibility: Designed as a direct replacement for Greenheck fans and Dayton units, specifically cross-referencing to part numbers 7108-2425 and 7108-6848.
- Internal Safety: Built-in thermally protected construction prevents winding failure during demanding continuous duty cycles.
- Quiet Operation: Utilizes sleeve bearings and a shaded pole design to minimize vibrational noise in occupied residential spaces.
- Standardized Frame: The 4.4-inch diameter and base/stud mounting options simplify retrofitting in existing attic exhaust and air move equipment.
Common Questions
What are the wiring lead colors for the different speeds?
Standard Fasco 3-speed motors typically use Black for High, Blue for Medium, and Red for Low, with White as the Common line. Always verify against the nameplate diagram before applying 115V power.
Can the Fasco D1061 replace a 1/20 HP single-speed motor?
Yes, provided the frame size (4.4"), shaft diameter (1/2"), and rotation (CCWSE) match. You can utilize the high-speed lead or install a multi-speed switch to take advantage of the 1/30 and 1/60 HP settings.
Is this motor suitable for moisture-heavy environments?
This motor features an Open Air Over (OAO) enclosure, meaning it requires the moving airflow to cool the windings and is best suited for dry-location ventilation like attic exhaust or indoor blower units.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $217.33
-65%$217.33
$76.07Fasco D1061 Motor
The Fasco D1061 Motor is a high-performance shaded pole replacement motor engineered for specific Greenheck OEM applications and general-purpose ventilation. This 4.4" diameter 3-speed blower motor provides multi-stage airflow control with ratings of 1/20, 1/30, and 1/60 HP at 115V. Operating at a high speed of 1500 RPM, it features an Open Air Over (OAO) enclosure and sleeve bearings for quiet, continuous-duty performance in attic exhaust fans and HVAC duct blowers. With a CCW shaft end rotation, 1/2" diameter shaft, and thermal protection, this motor is a drop-in direct replacement for standard 7108-2425 and 1AGF8 models. The dual-bolt circle mounting and 4 1/8" shell length ensure a precise fit in tight OEM blower housings. Technicians prefer the Fasco D1061 for its reliable 60Hz single-phase operation and versatility across multi-load residential and commercial ventilation systems.
Key Benefits
- Multi-Speed Flexibility: Features 3-speed capability (1500/1300/1050 RPM) allowing for precise airflow adjustment in HVAC ventilation systems.
- OEM Compatibility: Designed as a direct replacement for Greenheck fans and Dayton units, specifically cross-referencing to part numbers 7108-2425 and 7108-6848.
- Internal Safety: Built-in thermally protected construction prevents winding failure during demanding continuous duty cycles.
- Quiet Operation: Utilizes sleeve bearings and a shaded pole design to minimize vibrational noise in occupied residential spaces.
- Standardized Frame: The 4.4-inch diameter and base/stud mounting options simplify retrofitting in existing attic exhaust and air move equipment.
Common Questions
What are the wiring lead colors for the different speeds?
Standard Fasco 3-speed motors typically use Black for High, Blue for Medium, and Red for Low, with White as the Common line. Always verify against the nameplate diagram before applying 115V power.
Can the Fasco D1061 replace a 1/20 HP single-speed motor?
Yes, provided the frame size (4.4"), shaft diameter (1/2"), and rotation (CCWSE) match. You can utilize the high-speed lead or install a multi-speed switch to take advantage of the 1/30 and 1/60 HP settings.
Is this motor suitable for moisture-heavy environments?
This motor features an Open Air Over (OAO) enclosure, meaning it requires the moving airflow to cool the windings and is best suited for dry-location ventilation like attic exhaust or indoor blower units.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
