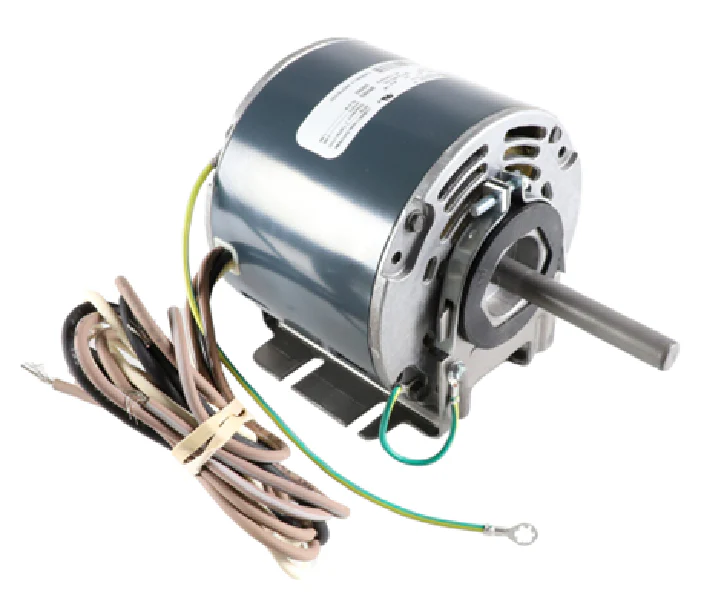

Fasco D0593 Motor
The Fasco D0593 Motor is a high-performance 1/6 HP 208-230V single-phase fan and blower motor, widely utilized in commercial air handlers, fan coil units, and attic ventilators. Built in a 42 frame with a compact 5-inch diameter, this PSC (Permanent Split Capacitor) motor operates at a consistent 1550 RPM and requires a 7.5 Mfd/370V capacitor for optimal torque and efficiency. Designed with Open Air Over (OAO) ventilation and Class B insulation, it excels in continuous duty applications where ambient temperatures approach 40°C. For contractors seeking a rugged replacement, the D0593 features durable ball bearings and a 1/2-inch by 3.3-inch shaft with a flat, ensuring a secure fit on most blower wheels. It is a direct technical replacement for the Century 593 and Marathon Z125, offering automatic thermal protection to prevent burnout during voltage fluctuations. The 36-inch leads and resilient base mounting make this Fasco blower motor a standard choice for maintaining static pressure in light commercial HVAC systems.
Key Benefits
- Optimized Compatibility: Designed as a drop-in replacement for the Century 593 and various 42-frame furnace blower motors.
- Industrial-Grade Durability: Equipped with dual ball bearings and rolled steel housing for extended life in continuous air over environments.
- Safety-First Design: Features internal automatic thermal protection to secure the windings against overheating or stalled rotor conditions.
- Installation Versatility: The resilient base and standard shaft dimensions simplify mounting in tight air handler or fan coil cabinets.
- Efficient Performance: Permanent Split Capacitor design maximizes electrical efficiency while maintaining a 1.32 Amp draw at 230V.
Common Questions
Is the capacitor included with the Fasco D0593 motor?
No, this motor requires a 7.5 Mfd, 370-volt run capacitor which must be purchased separately for proper startup and operation.
What is the rotation of this motor from the shaft end?
The D0593 is designed with counter-clockwise rotation as viewed from the shaft end (CCWSE), common in centrifugal blower applications.
Can I use this motor in a 115V system?
No, this unit is specifically engineered for 208-230V single-phase power. Attempting to run it on 115V will cause performance failure or motor damage.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
