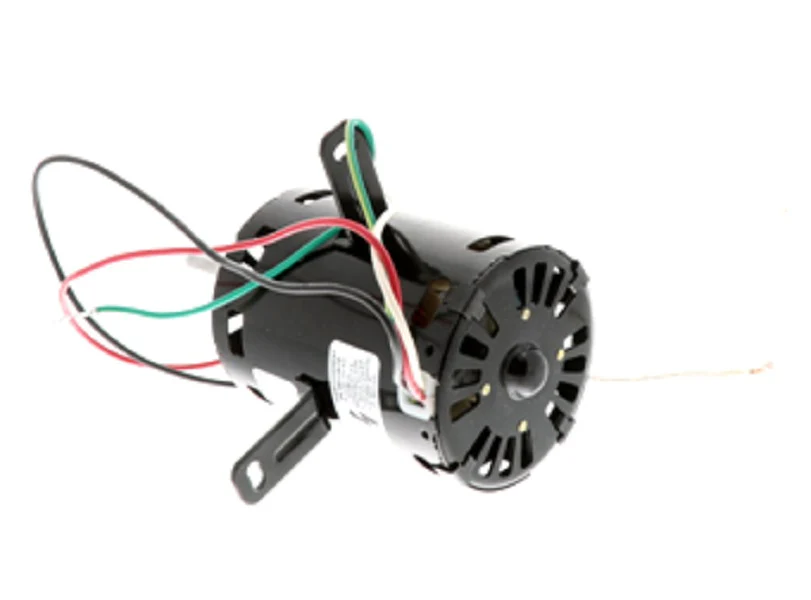

Fasco D0563 Motor
For professional HVACR technicians, the Fasco D0563 Motor represents a reliable shaded pole OEM replacement motor designed for versatile ventilation and condenser applications. This 3.3-inch frame motor is engineered for 115V single-phase operation, drawing 2.2 Amps at a 1600 RPM nameplate speed. Featuring a 2-speed configuration, it allows for precise airflow adjustment in various residential and light commercial units. The open air-over (OAO) enclosure ensures effective heat dissipation, while the automatic thermal protection safeguards the windings against overheating during continuous duty. With a 5/16" x 2-1/2" shaft and lug mounting, the Fasco D0563 is a direct drop-in for cross-reference B45267 and 48GN01. The counterclockwise shaft end (CCWSE) rotation and sleeve bearings provide quiet, high-efficiency performance in air-moving applications where a 1/15 HP motor is required. Use this direct drive blower motor to restore static pressure and system specifications without modifying existing brackets.
Key Benefits- Dual-speed versatility provides flexible airflow options for varying system demands.
- Lug mounting design ensures a secure fit and reduced vibration in compatible 3.3" frame housings.
- Shaded pole efficiency offers a cost-effective solution for fractional horsepower ventilation tasks.
- Automatic thermal reset prevents permanent motor failure by interrupting power if internal temperatures exceed safety limits.
- Standard 5/16 inch shaft diameter maintains compatibility with original blower wheels and fan blades.
Is the Fasco D0563 a direct replacement for my existing fan motor?
This motor is a standard OEM replacement for 3.3-inch diameter shaded pole motors. Check your original part number against cross-references like B45267 or 48GN01, and verify that your system uses 115V and CCWSE rotation.
Does this motor require a run capacitor for installation?
No, the Fasco D0563 is a shaded pole motor and does not require an external start or run capacitor, simplifying the wiring and installation process.
Can I use this motor in an enclosed environment?
This motor features an Open Air-Over (OAO) enclosure, meaning it relies on the moving air from the fan it drives for cooling. It must be mounted within the airflow path to prevent overheating.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
