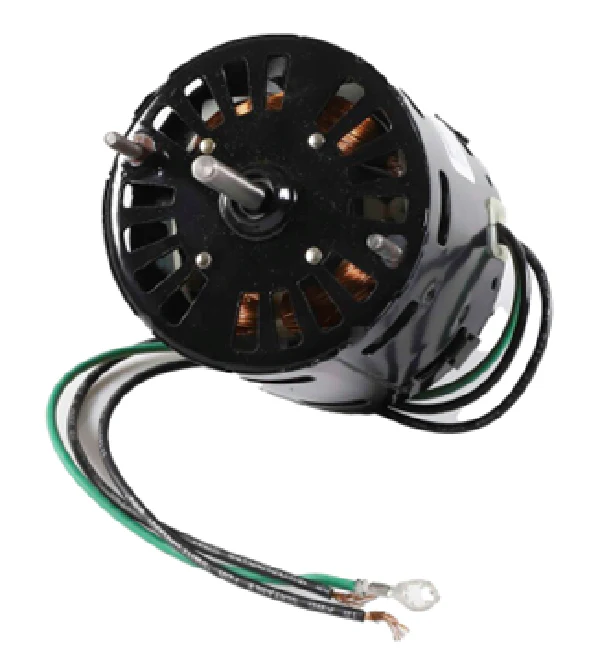

Fasco D011 Motor
The Fasco D011 Motor is a high-performance 3.3-inch diameter shaded pole motor engineered for continuous duty in demanding HVAC applications. This 1/30 HP replacement motor operates at 115V and 1.60 Amps, delivering a rated speed of 1500 RPM. Designed to meet OEM specifications for various draft inducer blowers and ventilation units, it features a single-speed design with clockwise shaft-end rotation (CWSE). Built with durability in mind, the Fasco D011 utilizes a 1/4" x 2-1/4" threaded shaft and sleeve bearings for quiet, reliable operation in high-cycle environments. When sourcing a direct-drive motor for residential or commercial air handlers, ensure the frame size and mounting patterns align with your existing assembly. This unit is an essential component for technicians requiring a drop-in replacement that handles the thermal loads associated with exhaust fan motors and furnace draft systems.
Key Performance Specifications
- Direct OEM Replacement: Designed for seamless integration into 3.3" frame blower assemblies.
- Thermal Protection: Internal impedance protection prevents winding failure during stalled conditions or overloads.
- Optimized Efficiency: 1.6 Amp draw at 115V provides the necessary torque for Fasco replacement motors without excessive energy consumption.
- Robust Build: Featuring sleeve bearings for reduced vibration and longevity in vertical or horizontal mounting positions.
- Versatile Application: Ideal for condenser fan motors, ventilation systems, and specific draft inducer replacements.
Common Technical Questions
What are the wiring requirements for the Fasco D011?
This is a standard 115V AC motor. Always verify that your supply voltage matches the nameplate rating and ensure a secure ground connection to the housing before energizing the circuit.
Can the rotation of the D011 be reversed?
No, the D011 is a fixed-rotation motor set to clockwise shaft end (CWSE). If your application requires CCW rotation, you must select the corresponding Fasco model to avoid mechanical failure.
How do I confirm the 3.3-inch frame size compatibility?
Measure the diameter of the motor housing. The 3.3" diameter motor is a standardized frame size commonly used in furnace blowers and exhaust units. Ensure your mounting studs or bracket align with this diameter.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Fasco D011 Motor
The Fasco D011 Motor is a high-performance 3.3-inch diameter shaded pole motor engineered for continuous duty in demanding HVAC applications. This 1/30 HP replacement motor operates at 115V and 1.60 Amps, delivering a rated speed of 1500 RPM. Designed to meet OEM specifications for various draft inducer blowers and ventilation units, it features a single-speed design with clockwise shaft-end rotation (CWSE). Built with durability in mind, the Fasco D011 utilizes a 1/4" x 2-1/4" threaded shaft and sleeve bearings for quiet, reliable operation in high-cycle environments. When sourcing a direct-drive motor for residential or commercial air handlers, ensure the frame size and mounting patterns align with your existing assembly. This unit is an essential component for technicians requiring a drop-in replacement that handles the thermal loads associated with exhaust fan motors and furnace draft systems.
Key Performance Specifications
- Direct OEM Replacement: Designed for seamless integration into 3.3" frame blower assemblies.
- Thermal Protection: Internal impedance protection prevents winding failure during stalled conditions or overloads.
- Optimized Efficiency: 1.6 Amp draw at 115V provides the necessary torque for Fasco replacement motors without excessive energy consumption.
- Robust Build: Featuring sleeve bearings for reduced vibration and longevity in vertical or horizontal mounting positions.
- Versatile Application: Ideal for condenser fan motors, ventilation systems, and specific draft inducer replacements.
Common Technical Questions
What are the wiring requirements for the Fasco D011?
This is a standard 115V AC motor. Always verify that your supply voltage matches the nameplate rating and ensure a secure ground connection to the housing before energizing the circuit.
Can the rotation of the D011 be reversed?
No, the D011 is a fixed-rotation motor set to clockwise shaft end (CWSE). If your application requires CCW rotation, you must select the corresponding Fasco model to avoid mechanical failure.
How do I confirm the 3.3-inch frame size compatibility?
Measure the diameter of the motor housing. The 3.3" diameter motor is a standardized frame size commonly used in furnace blowers and exhaust units. Ensure your mounting studs or bracket align with this diameter.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
