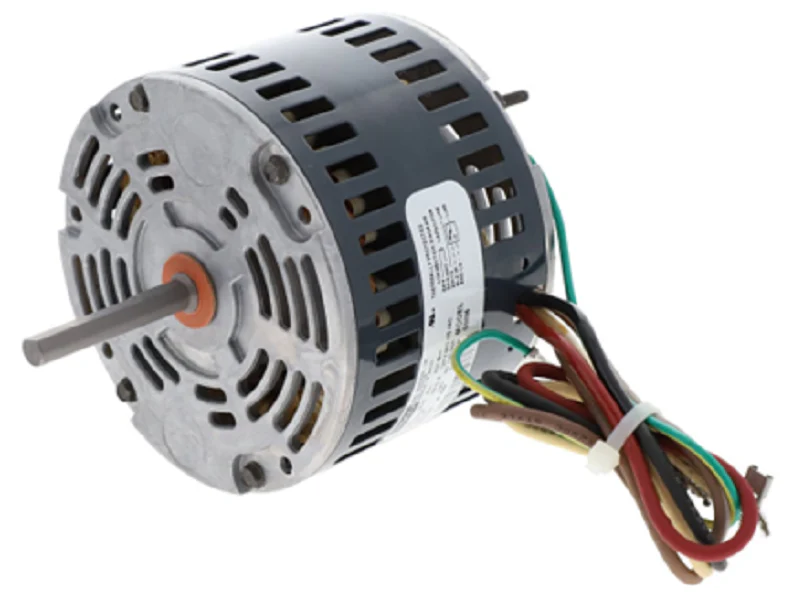

Fasco D0096 Motor
The Fasco D0096 Motor is a high-performance direct drive blower motor designed for critical applications in furnace blowers, air handlers, and fan coil units. This 1/15-1/30 HP HVAC motor operates on a standard 115V single-phase circuit, delivering a consistent 1050 RPM. As a veteran-grade OEM replacement motor, it features a Permanent Split Capacitor (PSC) design which requires a 5 MFD 370V capacitor (sold separately) for optimal torque and efficiency. The 5-inch diameter 42-frame housing is constructed from rugged rolled steel, ensuring the ventilation motor stands up to continuous air-over (OAO) duty cycles. With double-speed functionality and clockwise rotation (shaft end), this unit provides the versatility needed for multi-stage climate control systems. Precision-engineered ball bearings and automatic thermal protection minimize mechanical friction and prevent winding failure under load, making it a reliable choice for professional contractors performing system rehabilitations.
Key Benefits
- Dual-Speed Versatility: Supports 1/15 HP and 1/30 HP stages for precise airflow management in residential air handlers.
- Rugged Construction: Built with a 42-frame rolled steel shell and ball bearings for extended operational life in continuous duty.
- Thermal Protection: Features internal automatic reset to prevent overheating and protect against electrical surges.
- Simplified Mounting: Equipped with extended studs on the opposite shaft end for standard belly band or stud-mount configurations.
- Standardized Specs: A 3/8-inch diameter flatted shaft and 5-inch motor diameter ensure compatibility with a wide range of OEM fan wheels.
Common Questions
What capacitor is required for the Fasco D0096?
This motor requires a 5 MFD 370 Volt Permanent Split Capacitor to operate. Using an incorrectly rated capacitor can result in poor starting torque or motor burnout.
Is this a direct replacement for my existing blower motor?
The D0096 is a common replacement for 5-inch diameter ventilation motors. Always verify the HP, voltage, and rotation (Clockwise Shaft End) before installation. It often replaces obsolete models like the Fasco D142 and D1054.
Can this motor be mounted in any orientation?
This is an Open Air Over (OAO) motor designed to be cooled by the air it moves. It is suitable for mounting within the airstream of furnace blowers or fan coils using the provided studs.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
